Hydraulic oil filter kubota d1463 kubota kt

Traktor_com_pl offers: Hydraulic oil filter Kubota D1463 Kubota KT4FARMER

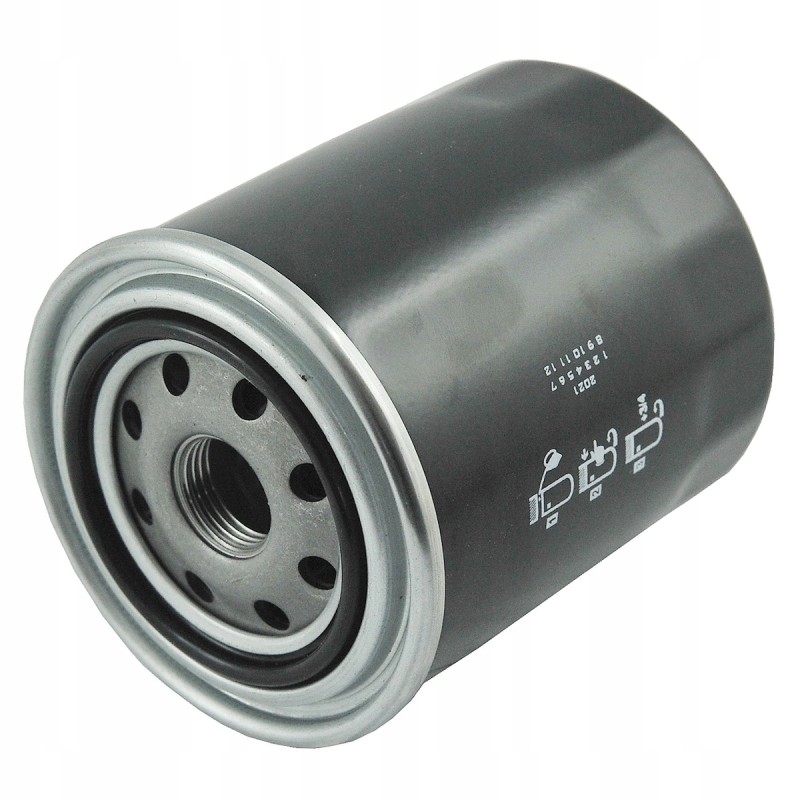

Hydraulic oil filter with 3/4'-16UNF thread, dimensions 102 x 81 mm, for Kubota KT series tractors and mini tractors with Kubota D1463 and other engines.

The main purpose of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that enter the hydraulic system or are created during the use of the tractor, e.g. solid (mineral) particles that are formed during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is frequently used, in the case of mini tractors, approximately every 100 operating hours in the case of used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual and usually after the first 50 operating hours (at least 3 cycles). A hydraulic filter is most often a metal filter with a thread and a gasket, which is mounted near the tractor box, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor,

Condition: New

Production: Replacement

Parts: Filters

Height (mm): 103

Diameter (mm): 81

Base diameter (mm): 84

Seal diameter (mm): 52 / 61

Engine model: Kubota D1463

Thread: 3/4'-16UNF

Tractor models: Kubota KT230

Comparison numbers: SH 60410, SH60410

Part number: S.76893

Original part number (OEM): 66021-36060

Dimensions :

height: 103 mm,

diameter: 81 mm,

base diameter: 84 mm,

seal diameter: 52 mm internal, 61 mm external,

thread: 3/4'-16UNF,

original part numbers: 66021-36060,

Comparator numbers: SH 60410, SH60410,

part numbers: S.76893.

Tractor models :

Kubota :

Kubota KT230.

Engine models :

Kubota :

Kubota D1463.

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter guarantees failure-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.
