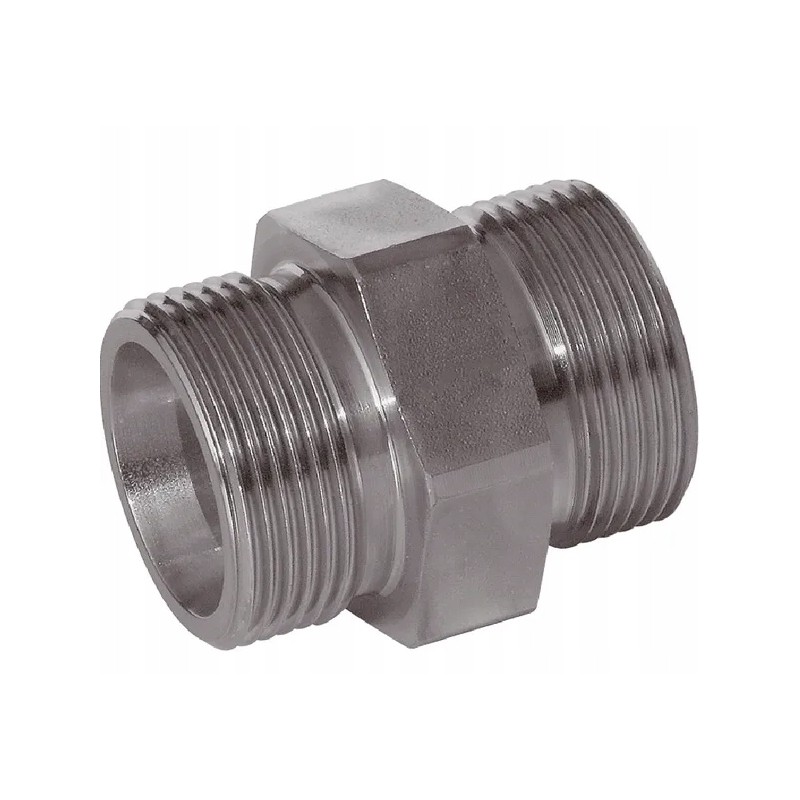

Gs16s straight connector m24x1 5 16s

GS16S Straight connector M24x1.5 16Walets

Limited risk of leakage

Product details

For direct connection to metric hose nut or pre-assembled connector

High corrosion resistance

Shape

Straight - 2 sides of the connection

Connector type no. 1

Cutting ring

Connector no. 1 type - male/female

Male

Connection diameter

16 mm

Connector no. 1 thread diameter

M24

Connector No. 1 thread pitch

1.50 mm

Connector thread type

Metric

S1 Wrench size for connector no. 1

27.0 mm

Connector type no. 2

Cutting ring

Connector type no. 2 - male/female

Male

Connection no. 2 diameter

16 mm

Connection no. 2 thread diameter

M24

Connection no. 2 thread pitch

1.50 mm

Connection no. 2 thread type

Metric

S2 Wrench size for connector no. 2

30.0 mm

L1 Distance between connectors

21 mm

Pipe diameter

16 mm

DIN standard

2353

2401

Inner diameter

12 mm

L Total length

38 mm

Surface treatment

Zinc

Nickel-plated

Working pressure max.

630 BAR

Series

S
