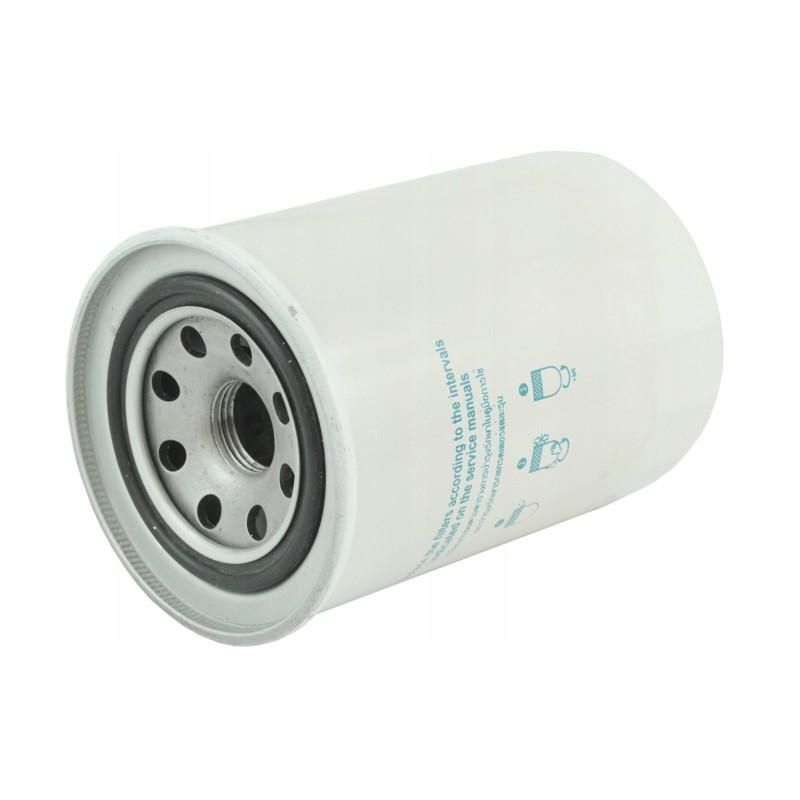

Kubota b w9501 15001 hydraulic oil filter

Traktor_com_pl offers: Hydraulic oil filter Kubota B W9501-15001 Kubota

Hydraulic oil filter with M20 x 1.5 thread, dimensions 123 x 80 mm, for Japanese tractors and mini tractors Kubota B series, Iseki TA series, TK, Mitsubishi MT series, Hinomoto E series, Mahindra, TOKO and others.

The main purpose of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that enter the hydraulic system or are created during the use of the tractor, e.g. solid (mineral) particles that are formed during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is frequently used, in the case of mini tractors, approximately every 100 operating hours in the case of used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual and usually after the first 50 operating hours (at least 3 cycles). A hydraulic filter is most often a metal filter with a thread and a gasket, which is mounted near the tractor box, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor,

Condition: New

Production: Replacement

Parts: Filters

Engine model: Kubota D1005, Kubota D1105

Height (mm): 123

Diameter (mm): 80

Base diameter (mm): 84

Seal diameter (mm): 52 / 63

Thread: M20 x 1.5

Tractor models: Kubota B2402, Hinomoto CX18, Kubota B177 Bull Star, Kubota JB16

Comparison numbers: HC-88010, W9501-15001, SH 60410

Weight (kg): 0.400

Dimensions :

height: 123 mm,

diameter: 80 mm,

base diameter: 84 mm,

thread: M20x1.5,

seal diameter: external: 63 mm, internal: 52 mm,

comparison numbers: W9501-15001, SH 60410, HC-88010.

weight: 0.400 kg.

Tractor models :

Kubota :

Kubota B2402,

Kubota JB16-2 Bull Star.

Hinomoto:

Hinomoto CX18.

Engine models :

Kubota :

Kubota D1005,

Kubota D1105.

Replacing the hydraulic filter (regularly) and cleaning the insert in the case of a mesh filter guarantees failure-free operation of the machine and ensures that there are no foreign bodies in the hydraulic system that may damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.
