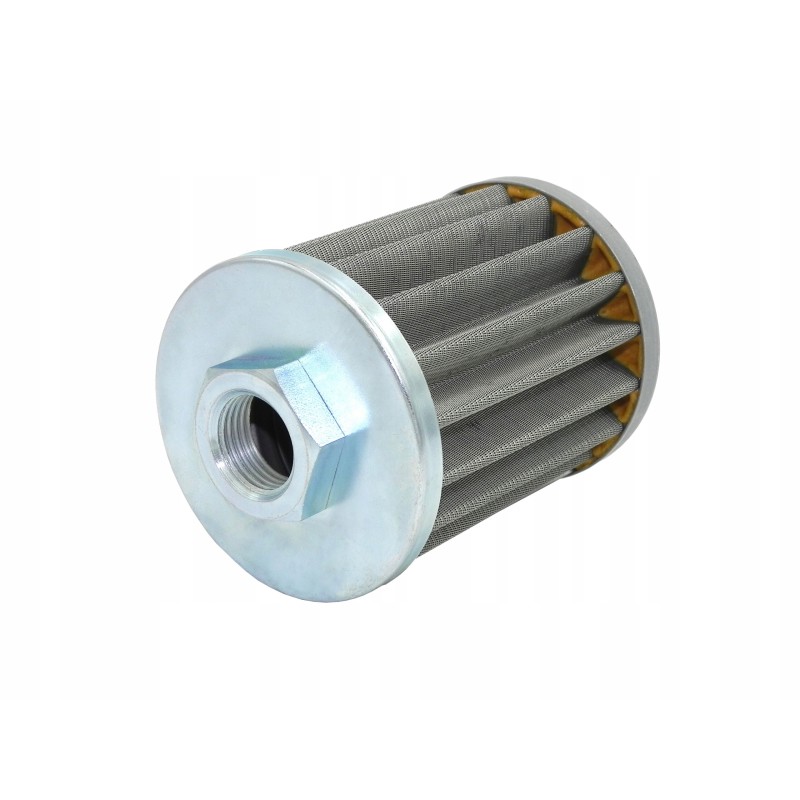

Hydraulic suction filter str0701m90 sh 77248

HYDRAULIC FILTER INSERT STR0701M90 SH 77248 Fits: SH 77248, FIOA 35, HHB04020, HY12122

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Universal filter mounted directly to the oil tank, intended for for operation on the suction line.

We recommend selecting filters with a relatively higher flow than required in a given hydraulic system. The reason for this is that the use of thick oil or quite low, negative temperature can reduce the real flow by up to 40%.

Technical data:

Installation method: completely immersed in the tank

Working fluid: mineral oils according to ISO 2943

Flow: 15L /min

Filtration: 90 microns

Filter material: metal mesh

Temperature: -25°C ~ +110°C

Connection: 1/2''

Technical data:

Installation method: completely immersed in the tank

Working fluid: oils mineral according to ISO 2943

Flow: 15L/min

Filtration: 90 microns

Filter material: metal mesh

Temperature: -25°C ~ +110°C

Connection: 1/2''

We offer most types of hydraulic motors as well as the complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
