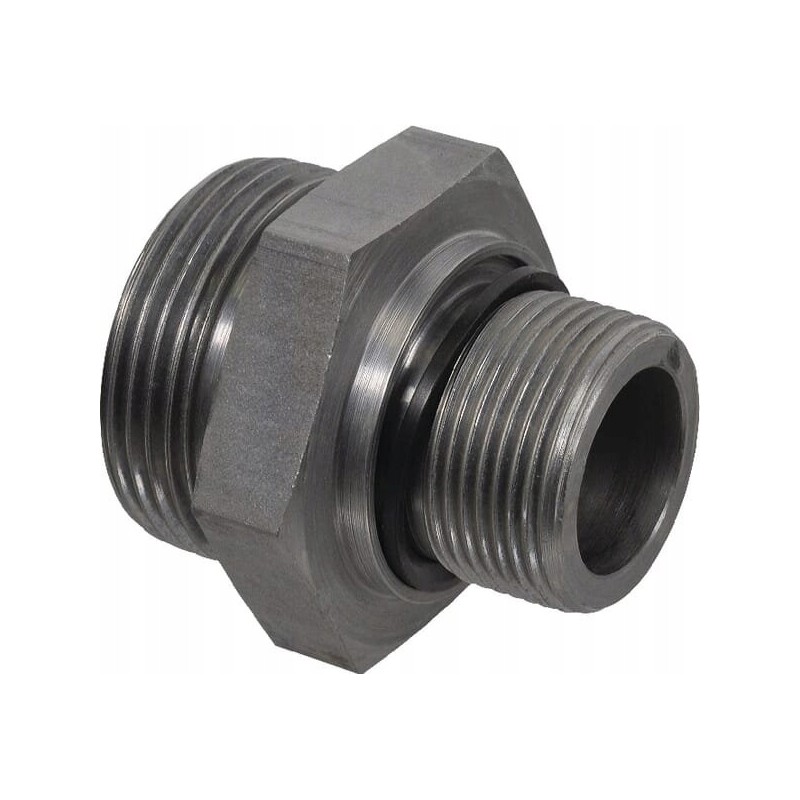

Straight connection with gasket m26x1 5 m36x2 28l

Straight connection with gasket M26x1.5 - M36x2 28L Parameters

Part number: GES28LM26WD

Unit: piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Straight - 2 sides connector

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connector diameter No. 1: 28 mm

Thread diameter of connector No. 1: 26 mm

Thread length of connector No. 1 [K]: 16 mm

Internal diameter: 18 mm

Working pressure max.: 250 BAR

Thread pitch of connector No. 1: 1, 5 mm

Seal material: Nitrile rubber [NBR]

Series: L

Tightening torque max.: 180 N m

Wrench size for connector no. 1: 31.9 mm

Wrench size for connector no. 1 [S1]: 41 mm

Connector No. 1 Thread Type: Metric

Connector No. 2 Thread Type: Sealing Ring

Connector No. 2 Male/Female Type: Male

Connector No. 2 Thread Diameter: M26

Connector No. 2 Thread Pitch: 1.5 mm

Connector No. Thread Type 2: Metric

Wrench size for connector no. 2 [S2]: 41 mm

Pipe diameter: 28 mm

ISO standard: 228

Length: 43 mm

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Surface treatment

- Zinc

- Nickel plated

DIN standard

- 2353

- 228

- 3852

- 2401
