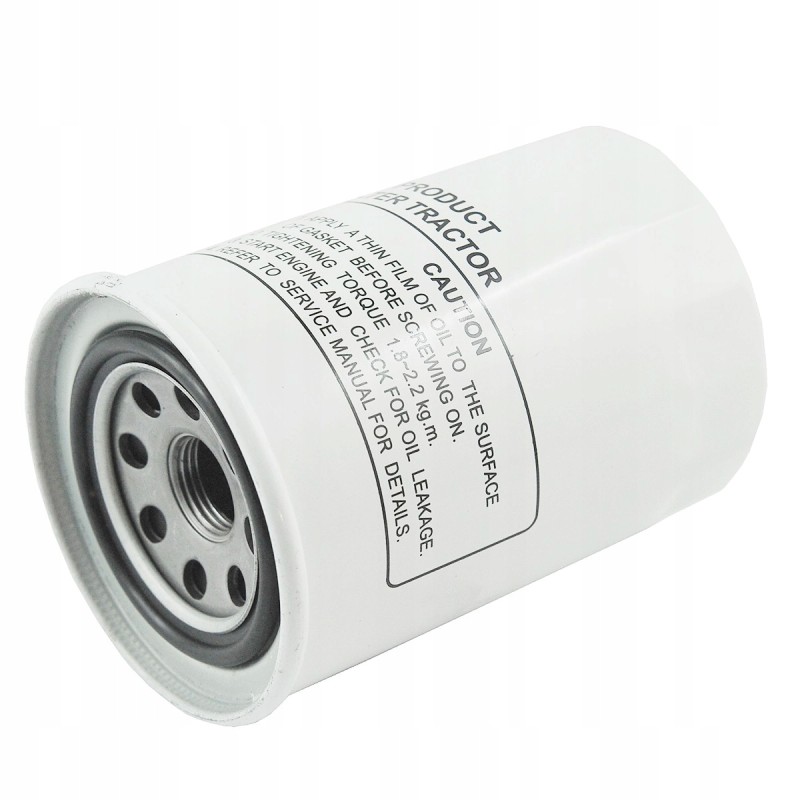

Engine oil filter kubota d 15213 3209 3 4

Traktor_com_pl offers: Engine oil filter Kubota D 15213-3209 3/44FARMER

Engine oil filter 3/4'-16UNF, height 120 mm, external diameter 80 mm, for Kubota tractors of the Kubota L185, Kubota L1801, Kubota L2201, Kubota L245, Kubota L1500, Kubota L1501, Kubota L4150, Kubota L3750 series with Kubota D950, Kubota engines D1105, Kubota D1503T, Kubota D662-BH, Kubota V1505, Kubota V1902 and others.

The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal, screw-on oil filter is a filter whose main task is to remove the smallest contaminants from the oil, up to 1/50 mm in size. The structure of the filter is very simple and consists of a metal can with thread and a paper insert inside, arranged in the so-called accordion to increase the filtration surface. Contamination of the oil for which we use a filter most often occurs, in the case of organic contaminants, from the breakdown of the oil itself during operation, from fuel residues or from oxidation by-products. Mineral contaminants are air pollutants and metal particles that appear in the engine during operation.

Condition: New

Production: Replacement

Parts: Filters

Height (mm): 118

Diameter (mm): 80

Seal diameter (mm): 50 / 62

Engine model: Kubota D950, Kubota D662, Kubota V1505, Kubota V1902 , Kubota D1105, Kubota D1503

Thread: 3/4'-16UNF

Tractor models: Kubota L1501, Kubota L1801, Kubota L185, Kubota L1500, Kubota Zen-Noh ZL2201, Iseki TS3110, Iseki TS4510, Kubota L3750, Kubota L4150, I seki TS2205, Hinomoto E222, Hinomoto 384, Iseki TS1910, Kubota L2201

Dimensions:

height: 118 mm,

diameter: 80 mm.

internal seal diameter 50 mm, external 62 mm,

thread: 3/4'-16UNF ,

original part numbers: 15213-3209, 15213-3206-0, T1624,

part numbers: 5-01-121-03.

Tractor models :

Kubota :

Kubota L185,

Kubota L1500,

Kubota L1501,

Kubota L1801,

Kubota L2201,

Kubota L245,

Kubota L3750,

Kubota L4150,

Kubota Zen-Noh ZL2201.

Iseki :

Iseki TS1910,

Iseki TS2205,

Iseki TS3110,

Iseki TS4510.

Hinomoto :

Hinomoto 384,

Hinomoto E222.

Engine models :

Kubota D950,

Kubota D1105,

Kubota D1503T,

Kubota D662-BH,

Kubota V1505,

Kubota V1902.

The filter is most often mounted on the side of the engine, and a clean, unused oil filter has a direct impact on the operation and life of the engine, fuel consumption, and in extreme cases, a clogged oil filter may lead to engine overheating and damage to the head gasket. Always replace the oil filter together with the oil change at the frequency specified in the machine's operating instructions.
