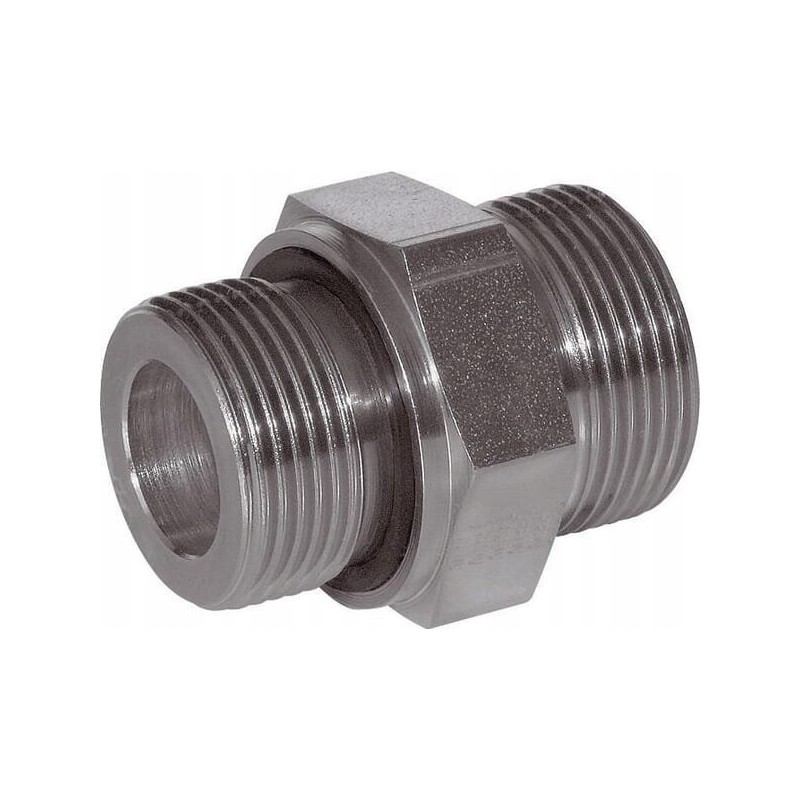

Straight connection with gasket 3 4 bsp m18x1 5

Straight connection with gasket 3/4' BSP - M18x1.5 12L Parameters

Part number: GES12LR34WD

Unit: piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Straight - 2 sides connector

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connector diameter No. 1 [G]: 12 mm

Thread diameter of connector No. 1 [G]: M18

Thread length of connector No. 1 [K]: 16 mm

Internal diameter: 10 mm

Max. working pressure: 250 BAR

Connector thread pitch No. 1 [G]: 1.5 mm

Seal material: Nitrile rubber [NBR]

Series: L

Tightening torque max.: 180 N m

Wrench size for connector no. 1: 31.9 mm

Wrench size for connector no. 1 [S1]: 22 mm

Connector No. 1 Thread Type [G]: BSP

Connector No. 2 Type: Seal Ring

No. 2 Connector Type - Male/Female: Male

Connector No. 2 Thread Diameter: 3/4 inch

Quantity threads per inch of thread for connector No. 2: 14

Thread type for connector No. 2: BSP

Wrench size for connector No. 2 [S2]: 32 mm

Pipe diameter: 12 mm

ISO standard: 228

Length: 37 mm

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Surface treatment

- Zinc

- Nickel plated

DIN standard

- 2353

- 228

- 3852

- 2401
