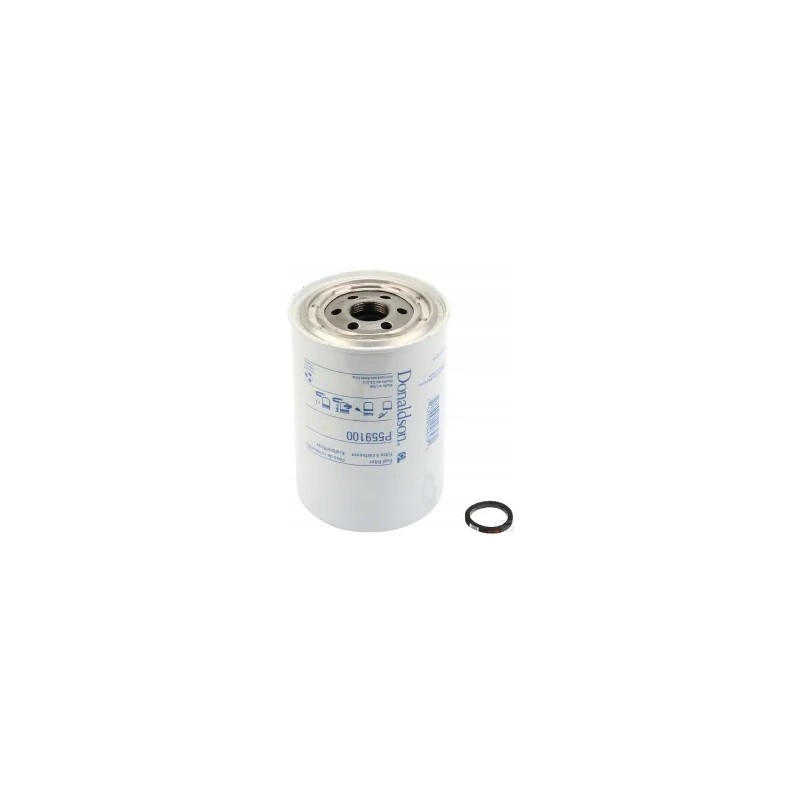

Donaldson P559100 fuel filter

Donaldson P559100 fuel filter

Dimensions:

Length - 132.3 mm

Outer diameter - 93.8 mm

Seal outer diameter - 69.3 mm

Inner diameter seals - 61.3 mm

Mounting thread type - UN

Mounting thread pitch {number of threads per inch} - 16

Mounting thread diameter - 15/16 inch

Filtering quality - 23 µm

Filtration level - Absolute

Operating pressure max. - 6.9 BAR

Filtered medium - Fuel

Substitutes:

P559100, SN183, SK3826, TP641, TP817, PF183, 40228945, 40252302, 40252306, 4025232, 4025236, 4028945, 402 8946, 4394335, 90028945, 9028945, 5963, FC27010, BF583, BF962, 86351, C8TF9365A, C8TZ9365A, C8TZ9365C, G0950551, H0950551, 1R0710, 3I1409, 8S4197, 9L8794, 9L9100, AZF038, Z67, FT488 1, 752011, D2NP559100, 4025230, 40289456, 74024230, 74028945, 740289456, 74394335, FF183, 9576P559100, P1119, DNP559100, 972, 987, F987, FF972, FF987, 7000014661, FP230F, LFP230, LFP230F, KC26, FD37, FD73, FD90, FG37, FG73, CS427, 6676386, F50041, F50164, PER41, FC5503, ACI 40002095 , 303073165, 400002506, 400002534, WGF183, ACI40002095, , 33351WIX, SFF9100, 522, 526, 95351, 7255910000, FF402, PL9L9100, PM347, PM9L9 100, 291, WD291, G1139EC, FF2225, P347, P9L9100, G033351, GF1106, 400002514, F150, F51, AP3240, AP3240A, LK3240, 025049, 25049, 12431100, 102624, PF291, PP41, 92801617, 92819217, 28005, RN472, RN478, T47582, 68 9056, FF559100, 00811484, 811484, S272CP,
