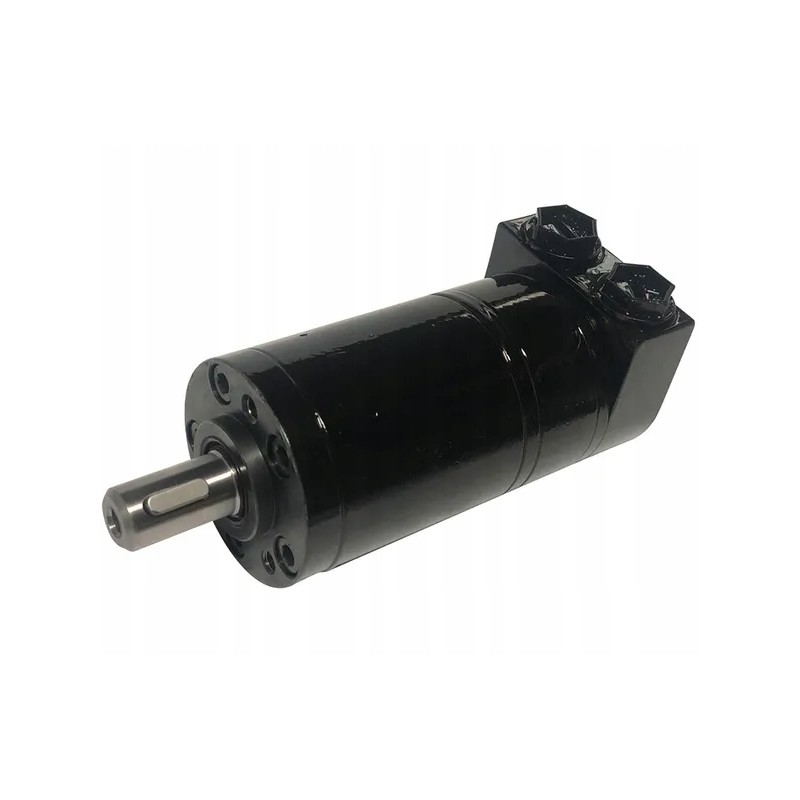

Smm20cpsgp orbital engine 20cc gopart

SMM20CPSGP 20cc orbital engine gopartEAN

8719607280426

Specifications

Large axial and radial axle load and high tightening torque

Application

Possibility of short-term use under high pressure

Fan and brush drives

Transport belts for combine harvesters

Properties

Rotor design

Wide shaft plain bearing

From a series of small orbital motors

Robust and compact design

End and side connections

Benefits

Good price-quality ratio

Flange shape

Round

Number of mounting holes

3

Shaft type

Cylindrical

Roller diameter

16 mm

Performance

20 cm³/ rpm

Continuous torque max.

25 N m

Continuous working pressure max.

100 BAR

Momentary working pressure max.

140 BAR

Working pressure max.

200 BAR

Flow max.

20 l/min

Max rotational speed

1005 rpm

Main connection thread diameter

3/8 inch

Main connection thread type

BSP

Drain connection thread diameter

1/8 inch

Type drain connection thread

BSP

Connection position

Side

L1 Rotor length

8.5 mm< p>

Maximum power

2.4 kW
