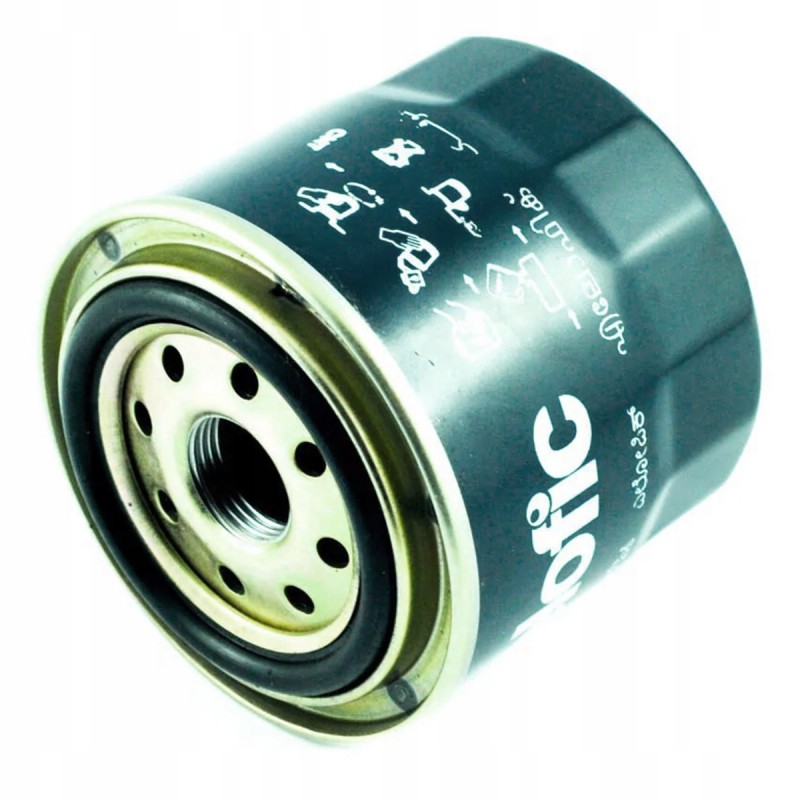

Yanmar AF330 F180 YM2220 engine oil filter

Traktor_com_pl offers: Engine oil filter Yanmar AF330 F180 YM2220Mitsubishi

Engine oil filter, dimensions 80x75 mm with M20x1.5 thread for Japanese mini tractors and Japanese tractors of the Mitsubishi VST series MT180, MT224, MT270, Yanmar series YM, AF, FX, F, Kubota Aste, G, L, Honda TX, Iseki HERE and others.

The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal, screw-on oil filter is a filter whose main task is to remove the smallest contaminants from the oil, up to 1/50 mm in size. The structure of the filter is very simple and consists of a metal can with thread and a paper insert inside, arranged in the so-called accordion to increase the filtration surface. Contamination of the oil for which we use a filter most often occurs, in the case of organic contaminants, from the breakdown of the oil itself during operation, from fuel residues or from oxidation by-products. Mineral contaminants are air pollutants and metal particles that appear in the engine during operation. The filter is most often mounted on the side of the engine, and a clean, unused oil filter has a direct impact on the operation and life of the engine, fuel consumption, and in extreme cases, a clogged oil filter may lead to engine overheating and damage to the head gasket. Always replace the oil filter together with the oil change at the frequency specified in the machine's operating instructions.

Condition: New

Parts: Filters

Outer diameter (mm): 80

Height (mm): 75

Base diameter (mm): 83

Seal diameter (mm): 50 / 62

Thread: M20X1.5

Tractor models: Yanmar F-180, Shibaura D275F, Mitsubishi MT205, Iseki TU220, Kubota MT23, Kubota JB16, Yanmar F16D, Kubota Aste A-175, Mitsubishi Kumiai MT2201D, Mitsubishi VST MT180, Honda TX18, Mitsubishi VST MT270, Mitsubishi VST MT224, Yanmar FX26D, Iseki TU140, Yanmar FX335, Yanmar YM2220, Kubota B17 7 Bull Star

Comparison numbers : EK-6036, MM409-365, MM409365

Production: Replacement

Dimensions :

Height: 75 mm,

Outer diameter: 80 mm,

Filter base diameter: 83 mm,

Seal outer diameter: 62 mm Inner diameter seals: 50 mm,

Thread: M20 x 1.5 (18.60 mm),

Index: MM409-365, MM409365, EK-6036,

ITEM No. 23 MARKED IN RED ON THE GRAPHIC.

Tractor models:

Mitsubish i:

Mitsubishi MT23,

Mitsubishi MT205,

Mitsubishi MT1801,

Mitsubishi VST MT180,

Mitsubishi VST MT224,

Mitsubishi VST MT270,

Mitsubishi Kumiai MT2201D,

Mitsubishi MT265.

Yanmar :

Yanmar AF330,

Yanmar F180,

Yanmar YM2220,

Yanmar F155,

Yanmar FX26D,

Yanmar FX235,

Yanmar FX335,

Yanmar F16D,

Yanmar YM1702D.

Shibaura :

Shibaura D275F.

Kubota :

Kubota Aste A-175,

Kubota Bulltra B1-17

Kubota B177 Bull Star,

Kubota JB16-2 Bull Star,

Kubota GT8,

Kubota L-205,

Kubota X20.

Honda :

Honda TX18.

Iseki :

Iseki TU220,

Iseki TU140.
