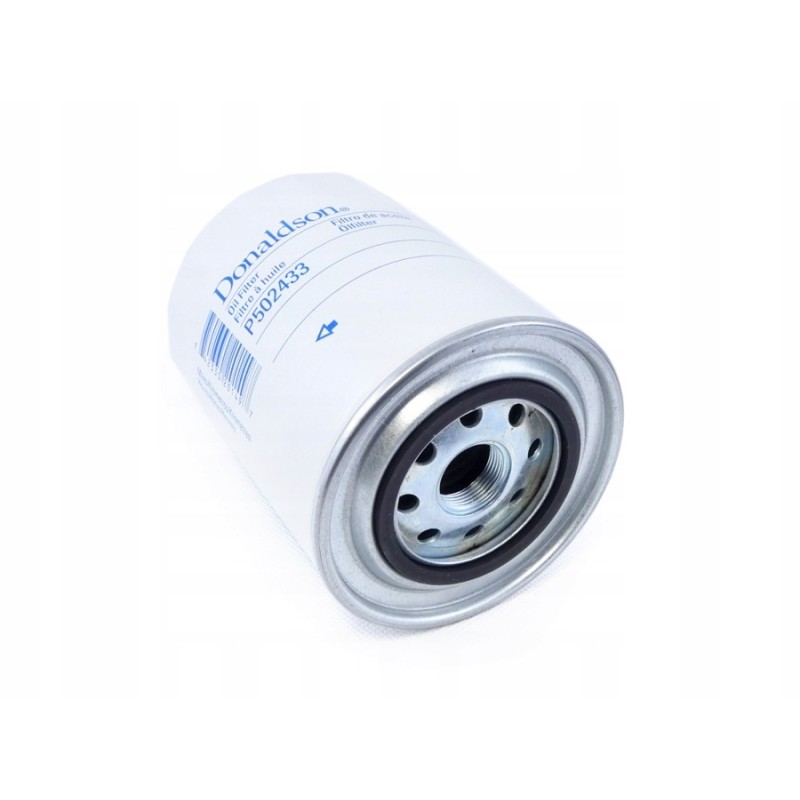

P502433 Donaldson oil filter

Agro Filters Over 10 thousand. filters in our offer.

Welcome to shopping!

Oil filter P502433manufacturer: Donaldson

-

Dimensions in mm:H1: 147

D1: 109

D2: 70

D3: 63

THREAD: M24 x 1.5

-

No. comparative: 836662580, V836662580, SO11001, 65W1140, W114011, P5202433, LF3783, 165010420300, 62000070700, 162000070762, 836647133, V83667 9586, P502433, W1140/11, SP5152, 6219784M1, B7179, 0986B01024, 9455081035, 162000070700, 162000070744, 87660441, PH9748, H40W02, 02950201, 2950201, LFP8501, OC335, 47108985, 47335745, 84287923, 87660449, 87708114, L1077, 5078842, 836662111, V836662 111, 20147133, , 84287923-CNH, S3591R, 836679586,

-

Features

Outer diameter 109 mm (4.29 inch)

Thread size M24 x 1.5

Length 147 mm (5.79 inch)

Wed. external seals 70 mm (2.76 inch)

Wed. internal seals 62.1 mm (2.44 inch)

Beta coefficient 75 21 micron

Std. ISO 16889 performance test

Including preventing filter emptying Yes

Bypass valve Yes

Bypass valve low range setting 1.7 bar (25 psi)

Bypass valve high range setting 2.1 bar (30 psi)

Type of filtered medium Cellulose

Type Full flow

Swirl Style

Main application AGCO 836647133

-

-

If you would like to receive an invoice, please provide the data needed to issue it!

Original numbers are provided for comparison purposes only.

The above-mentioned parts are spare parts.
