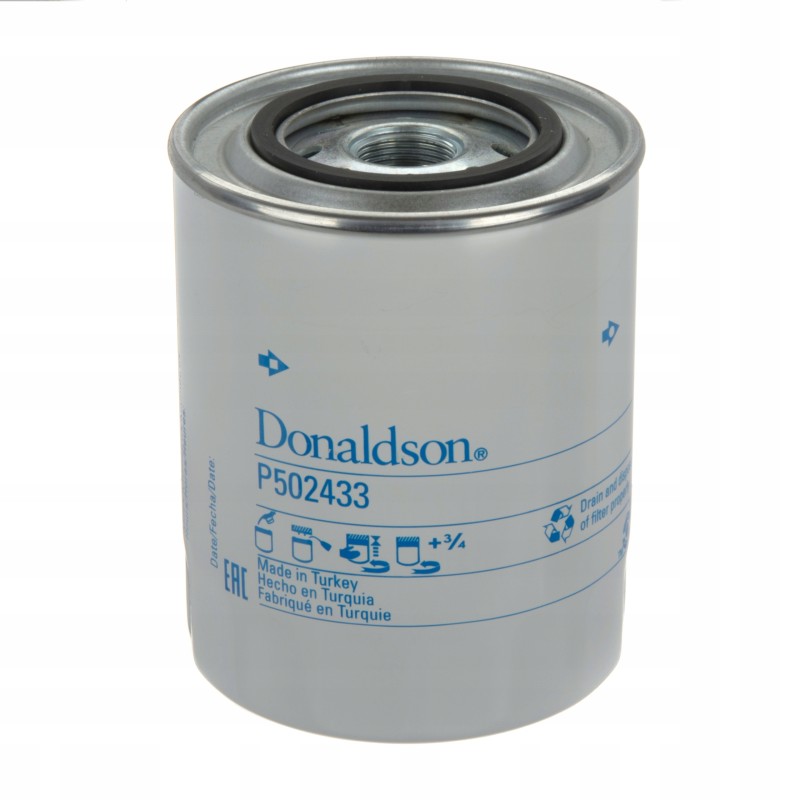

Oil filter donaldson p502433 nh valtra mf case

Oil filter Donaldson P502433 NH Valtra MF CASE MIZAR number: 53232

The oil filter cleanses the oil flowing in the system from contaminants in the form of mineral particles and semi-solid organic particles generated during vehicle operation. This filter is intended to prevent contaminants from entering the engine, extending its durability and ensuring failure-free operation. The filter takes the form of a metal can mounted in the engine block. A clogged oil filter causes a decrease in engine efficiency, increased fuel consumption, and engine overheating, which may lead to damage to the head gasket or even seizure of the drive unit. Technical parameters:

Thread: M24 x 1.5

Height: 147mm

Outer diameter: 109mm

Outer diameter seals: 70mm

Inner diameter seals: 62.1mm

Beta Factor 75: 21 micron

It has a bypass valve

Bypass valve low range setting: 1.7 bar (25 psi)

Bypass valve high range setting: 2.1 bar (30 psi)

Application:

MASSEY FERGUSON

5460 , 5465 , 5470 , 5480

5608 , 5609 , 5610

6460 , 6470 , 6475 , 6480 , 6485 , 6490 , 6495 , 6497 , 6499

6612 (Dyna 4) , 6613 (Dyna 4/6/VT) , 6614 (Dyna 6/VT) , 6615 (Dyna 4/6/VT) , 6616 (Dyna 6/VT)

6712S (Dyna 4) , 6713S (Dyna 4 / 6 / VT) , 6714S (Dyna 4 / 6 / VT) , 6715S (Dyna 4 / 6 / VT) , 6716S (Dyna 6 / VT) , 6718S (Dyna 6 / VT) )

7465 , 7475 , 7480 , 7485 , 7490 , 7495 , 7497 , 7499

7614 , 7615 , 7616 , 7618 , 7619 , 7620 , 7622 , 7624 , 7626

7714 (Dyna 4) , 7715 (Dyna 4 / 6 / VT) , 7716 (Dyna 6 / VT) , 7718 (Dyna 6 / VT) , 7719 (Dyna 6/VT) , 7720 (Dyna 6/VT) , 7722 ( Dyna 6/VT) , 7724 (Dyna 6/VT) , 7726 (Dyna 6/VT)

8140 , 8150 , 8160

8240 , 8250 , 8260 (01-2001 >,) , 8260 LST

8450 , 8460

VALTRA

6750HI , 6800 , 6800E , 6850HI , 6900

8000, 8050, 8050E, 8050HI, 8100, 8100E, 8150, 8150E, 8150HI, 8200, 8200E, 8350HI, 8400, 8400E, 8450, 8450E, 8450HI , 8550 , 8550E , 8550HI , 8750 , 8750E , 8800 , 8950HI

C100 , C110 , C120 , C120E , C130 , C150 , C90

F115

M120, M120E, M130, M150

N101 Classic, N101 Hi-Tec, N111 Classic, N111e Advance, N111E Hi-TEC, N111E LS, N121 ADVANCE, N121 HI-TEC, N121 LS, N122 Direct, N122 Versu, N141 ADVANCE, N141 HI-TEC, N141 LS, N141 LS, N142 Direct , N142 Versu , N91 Classic , N91 HI-TEC

T120 , T130 , T140E , T150 , T153 HI-TECH , T160 , T170 , T180 , T190 , T191 LH

T121 H/C , T131 H/C , T151 EH , T151 ELS , T161 H , T161 LS , T161C , T171 C/H , T171 LS , T191 LS

T132 D/V , T152 D/V , T162 D/EV , T172 D/V , T182 D/V , T202 D/V

T120 C/CH , T130 C/CH , T140E C/CH , T150 C/CH , T160 C/CH , T170 C/CH

X120 (HI)

XM130 , XM150

NEW HOLLAND

T7510 , T7520 , T7530 , T7540 , T7550

TVT135 , TVT145 , TVT155 , TVT170 , TVT190 , TVT195

STEYR

9080M , 9080MT , 9085MT , 9090M , 9090MT , 9095MT

9100M , 9100MT , 9105 , 9105MT , 9115 , 9125 , 9145

CVT120 , CVT130 , CVT150 , CVT170 , CVT6135 , CVT6140 , CVT6145 , CVT6150 , CVT6155 , CVT6160 , CVT6170 , CVT6175 , CVT6190 , CVT6195

M9078 (01/99->,) , M9086 (01/99->,) , M9094 (01/99->,)

CASE IH

CS100 , CS110 , CS120 , CS130 , CS150 , CS78 , CS80 , CS86 , CS90 , CS94

CS105Pro , CS80Pro , CS85Pro , CS95Pro

CVX1135 , CVX1145 , CVX1155 , CVX1170 , CVX1190 , CVX1195 , CVX120 , CVX130 , CVX140 , CVX150, CVX160, CVX170,CVX175, CVX195

FENDT

SCR S4

310 , 311 , 312 , 313

MIZAR number: 53232
