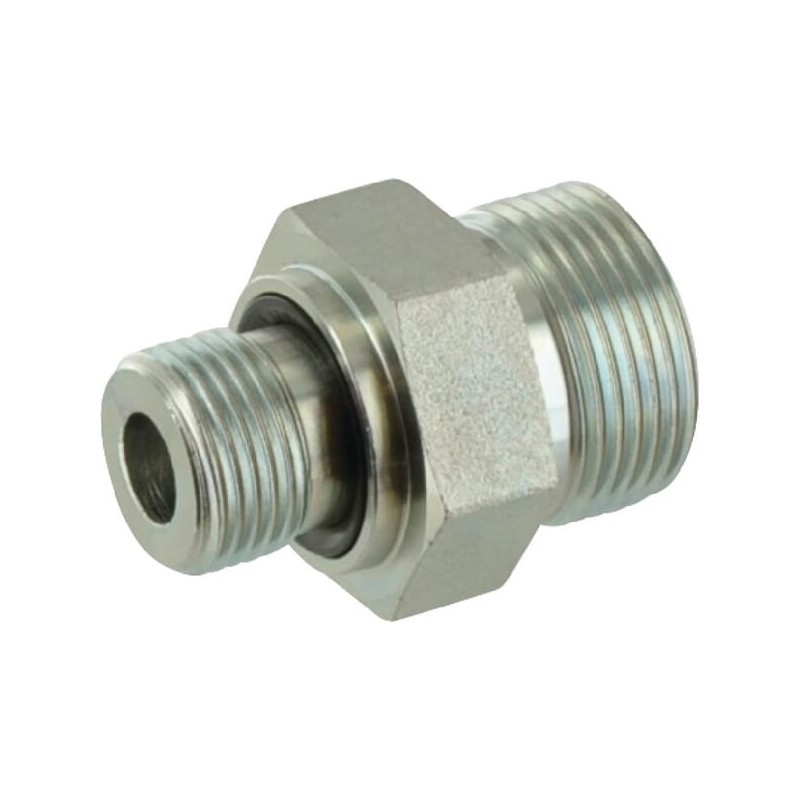

Straight connection with gasket 3 8 bsp m24x1 5

Straight connection with gasket 3/8' BSP - M24x1.5 16S Parameters

Part number: GES16SR38WD

Unit: piece

Manufacturer: Unbranded

Features: - High corrosion resistance

Shape: Straight - 2 sides connector

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Female

Connector diameter No. 1 [G]: 16 mm

Thread diameter of connector No. 1 [G]: M24

Thread pitch of connector No. 1 [G]: 1.5 mm

Seal material: Nitrile rubber [NBR]

Series: S

Connector thread type No. 1 [G]: Metric

Connector No. 2 Type: Thread

Connector No. 2 Type - Male/Female: Male

Connector No. 2 Thread Diameter: 3/8 inch

Connector No. 2 Thread Type: BSPT

Pipe Diameter: 16 mm

ISO standard: 228

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Surface treatment

- Zinc

- Nickel plated

DIN standard

- 2353

- 228

- 3852

- 2401
