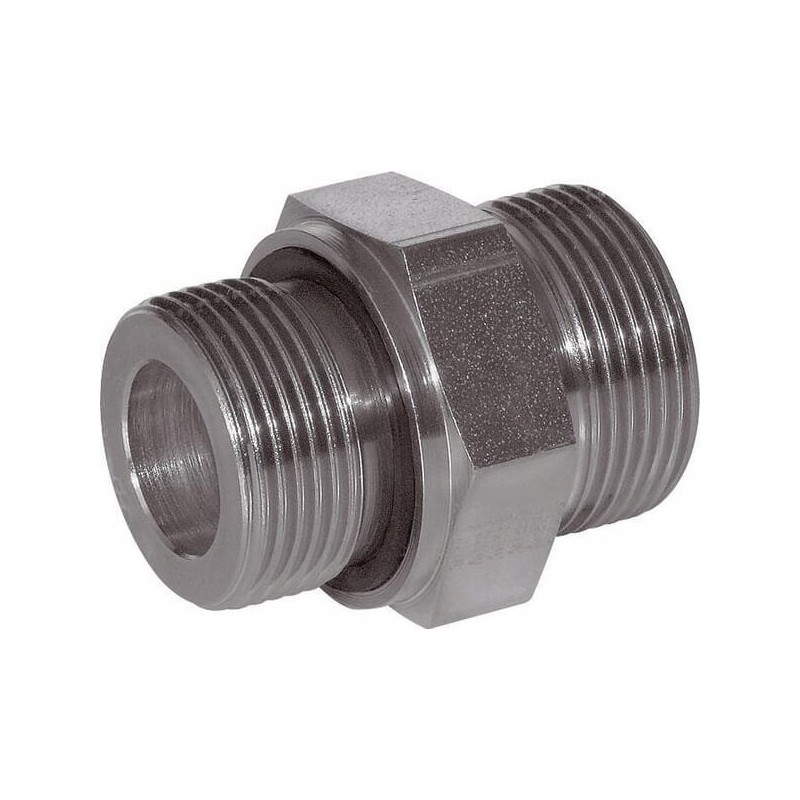

Straight connection with gasket 3/4' BSP - M36x2 25S Parameters

Part number: GES25SR34WD

Unit: piece

Manufacturer: Voss

EAN: 8716106949168

Features: - High corrosion resistance

Shape: Straight - 2 sides of connection

Connector type: Cutting ring

Connector type - male/female: Male

Connection diameter [G]: 25 mm

Connector Thread Diameter [G]: M36

Connector Thread Length [K]: 16 mm

Connector No. 1 Thread Pitch [G]: 2 mm

Connector Thread Type [G]: BSP

Connector Key Size No. 1 [d7]: 31.9 mm

Wrench size for connector [S1]: 41 mm

Connector type No. 2: Seal ring

Connector type No. 2 - male/female: Male

Connector No. 2 [d2] thread diameter: 3/4 inch

Number of turns per inch of thread for connector No. 2: 14

Thread type for connector No. 2: BSP

Wrench size for connector No. 2 [S2]: 46 mm

Pipe diameter: 25 mm

ISO standard: 228

Inner diameter .: 16 mm

Length: 51 mm

Working pressure max.: 420 BAR

Seal material: Nitrile rubber [NBR]

Series: S

Tightening torque max.: 200 N m

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Dimension from the axis of the joint to the end of the next joint [L2]

47mm

Dimension from the axis of joint no. 2 to the end of the next joint [L]

23mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
