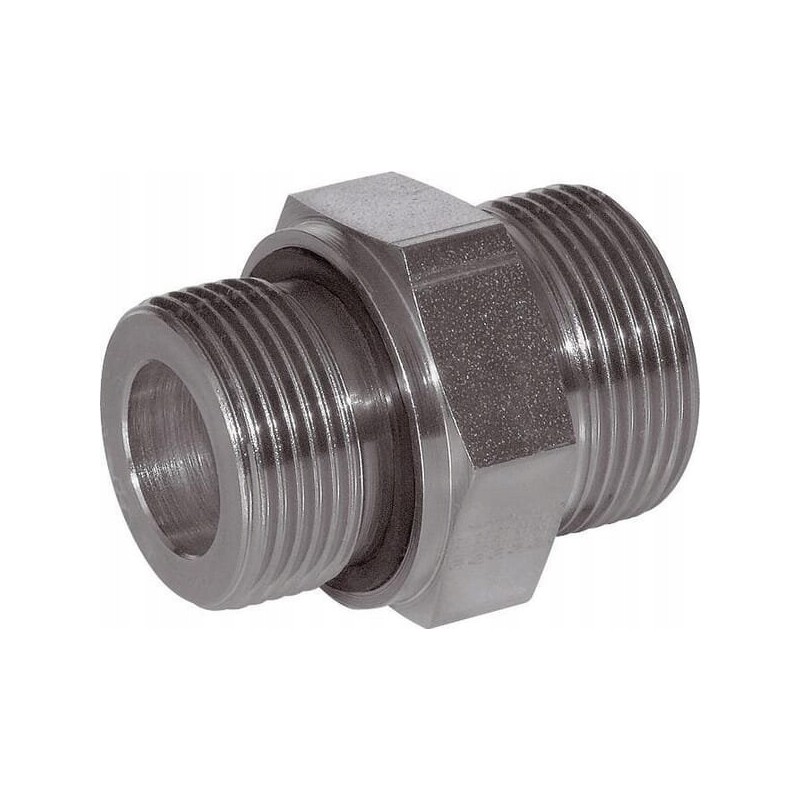

Straight connection with gasket 1 1 4 bsp m36x2

Straight connection with gasket 1-1/4' BSP - M36x2 25S Parameters

Part number: GES25SR114WD

Unit: piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Straight - 2 sides connector

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connector diameter No. 1 [G]: 25 mm

Thread diameter of connector No. 1 [G]: M36

Thread length of connector No. 1 [K]: 20 mm

Internal diameter: 20 mm

Working pressure max.: 420 BAR

Connector thread pitch No. 1 [G]: 2 mm

Seal material: Nitrile rubber [NBR]

Series: S

Tightening torque max.: 500 N m

Wrench size for connector No. 1: 49.9 mm

Wrench size for connector No. 1 [ S1]: 50mm

Connector No. 1 Thread Type [G]: BSP

Connector No. 2 Type: Seal Ring

No. 2 Connector Type - Male/Female: Male

Connector No. 2 Thread Diameter: 1-1/4 inch

Quantity threads per inch of thread for connector No. 2: 11

Thread type for connector No. 2: BSP

Wrench size for connector No. 2 [S2]: 50 mm

Pipe diameter: 25 mm

ISO standard: 228

Length: 55 mm

Specifications

- For direct connection to a metric hose nut or pre-assembled connector Benefits

- Low risk of leakage Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Available on request in a stainless steel version - Viton

gasket available on request Surface treatment

- Zinc

- Nickel plated

Dimension from the axis of the joint to the end of the next joint [L2]

23mm

Dimension from the axis of joint no. 2 to the end of the next joint [L]

55mm

DIN standard

- 2353

- 228

- 3852

- 2401
