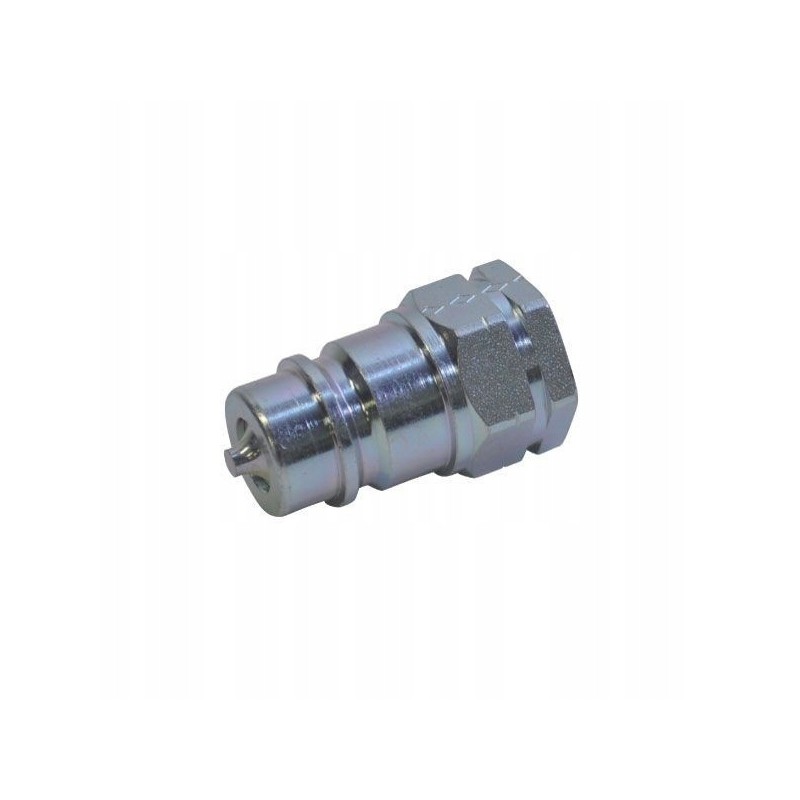

Skpm12d18 quick connector iso 12 5 internal thread m18x1 5

Quick connector ISO 12.5 internal thread. M18x1.5 - plug, HP102IMF18 INDEX: SKPM12D18

Features: - Standard agricultural connector - Push to connecta

Shape: Straight - 2 sides of the connection

Application: - Universal use - Agricultural machinery - Municipal technology - Mineral oil-based fluids

Outer diameter: 38mm

ISO standard: 7241-1-A

Connection: dB

Connection diameter: 20.5mm

Surface treatment: White passivated

Total length: 62mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Working pressure: 250BAR

Connector type no. 2 - male/female: Female

Possibility connections under pressure: No

Max operating temperature: 100°C

Min operating temperature: -30°C

Connection type: plug

Thread pitch of connector no. 2: 1.5mm

Type of connector no. 2: Thread

Thread diameter of connector no. 2: M18

Size (code): BG 3

Connection thread type no. 2: Metric

Connector type no. 1: Quick connector

Connector no. 1 type - male/female: Male
