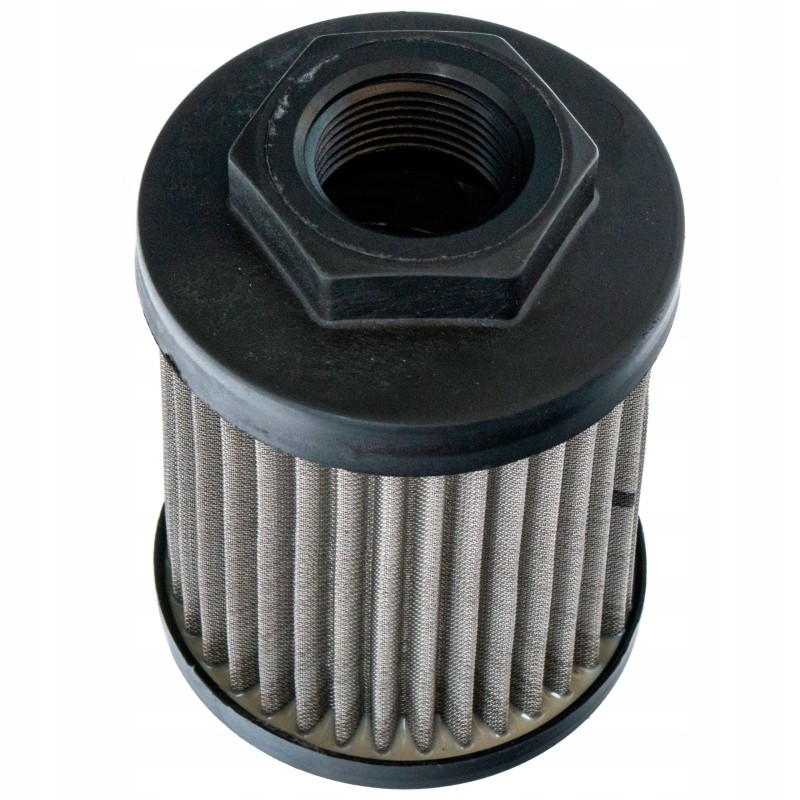

Suction filter SRT 70/2 M90 STR702M90 3/4' BSP MIZAR number: 56200

Suction filter SRT 70/2 M90 STR702M90 3/4' BSP 67L/min No. comparison: 070/2-12-S-M90

STR series suction filters are screwed directly to the suction line and mounted sufficiently deep, below the oil level. They are available in various sizes for flow rates up to 600 l/min.

Technical specifications

Thread: 3/4' BSP (length 10 mm)

Total height: 95 mm

Outer diameter: 70 mm

Wrench size: 42 mm

Filter material: Metal mesh

Filtration degree: 90 µm

Temperature range: from -25 °C to +100 °C

Working fluid: mineral oils according to ISO2943

MIZAR number: 56200
