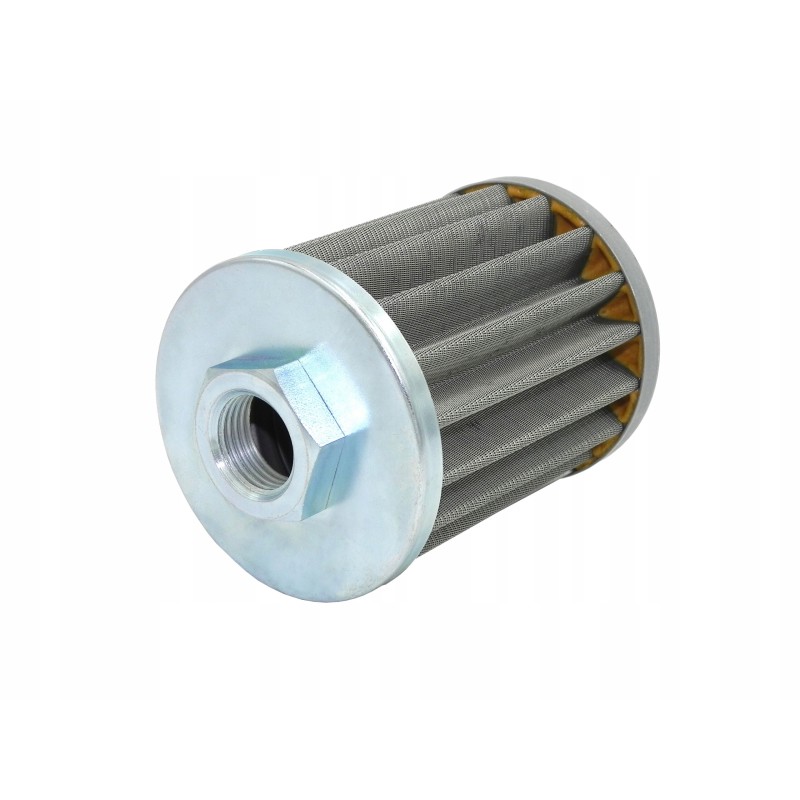

Hydraulic suction filter str0702m90 sh 77334

HYDRAULIC FILTER STR0702M90 SH 77334 Fits: SH 77334, FIOA 50, P171869, HHB04021, HY12126

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Universal filter mounted directly to the oil tank , intended for operation on the suction line.

We recommend selecting filters with a relatively higher flow than required in a given hydraulic system. The reason for this is that the use of thick oil or quite low, negative temperature can reduce the real flow by up to 40%.

Technical data:

Installation method: completely immersed in the tank

Working fluid: mineral oils according to ISO 2943

Flow: 45L /min

Filtration: 90 microns

Filter material: metal mesh

Temperature: -25°C ~ +110°C

Connection: 3/4''

We offer most types of hydraulic motors as well as a complete range of hydraulics force. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
