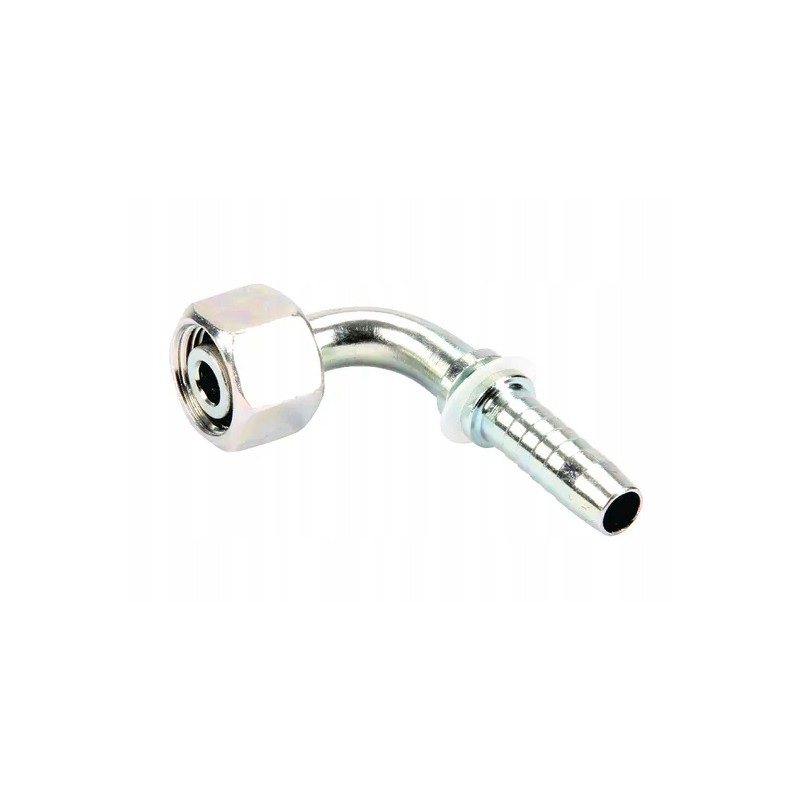

PGLO101690 Tip DN10-M16x1.5-10L-90° Product details

Cone, conical seal with O-ring L

series crimping ring connection Contains

Tips

O-ring sealing ring Cone angle

24°

Shape

Elbow - 2 sides of the connection Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

DKOL

Connector No. 1 thread diameter

M16

Thread pitch of connector no. 1

1.50 mm

Key size for connector #1

19.0 mm

Connector type no. 2

Hose connector

Connector type no. 2 - male/female

Men's

Diameter of connection no. 2

3/8 inch

Diameter of connection no. 2

10 mm

Dimension from the axis of a joint to the bottom of the next joint 30mm

Angle

90°

Material

Steel

Surface treatment

Galvanized

White passivated

Series

10L

OE reference number

H1221593-0616B0

Connection

xx

Type

DKOL
