Skpm12n22 quick connector plug skp m 1 2

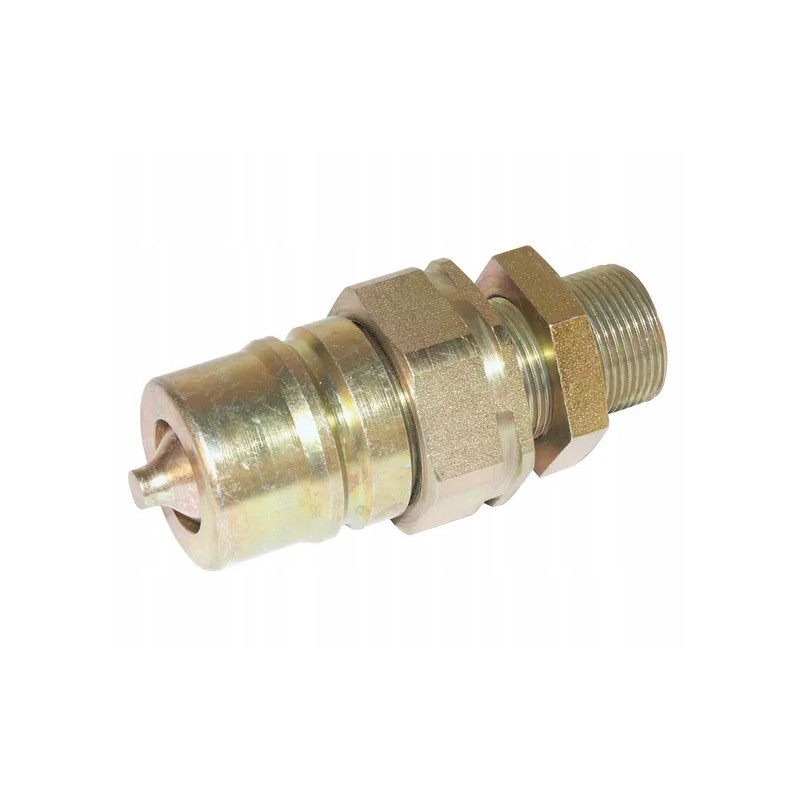

SKPM12N22 Quick connector plug SKP-M 1/2' bulkhead thread M22x1.5 15L Application

Universal use

Agricultural machinery

Municipal technology

Mineral oil-based fluids

Properties

Standard agricultural connector

Push to connecta

Shape

Straight - 2 sides of the connection

Size (code)

BG 3

Connector type no. 1

Quick connector

Connector type no. 1 - male/female

Male

Connection diameter

20.6 mm

Connector type no. 2

Thread

Connector type no. 2 - male/female

Male

Connection No. 2 diameter

15 mm

Connection No. 2 thread diameter

M22

Connection No. 2 thread pitch

1.50 mm

Connection No. 2 thread type

Metric

Can be connected under pressure

No

ISO standard

7241-1-A

Total length

86 mm

Surface treatment

White passivated

Operating pressure

250 BAR

Operating temperature max.

100 °C

Operating temperature min.

-30 °C

Seal material

Nitrile rubber [NBR]

Teflon ( PTFE)
