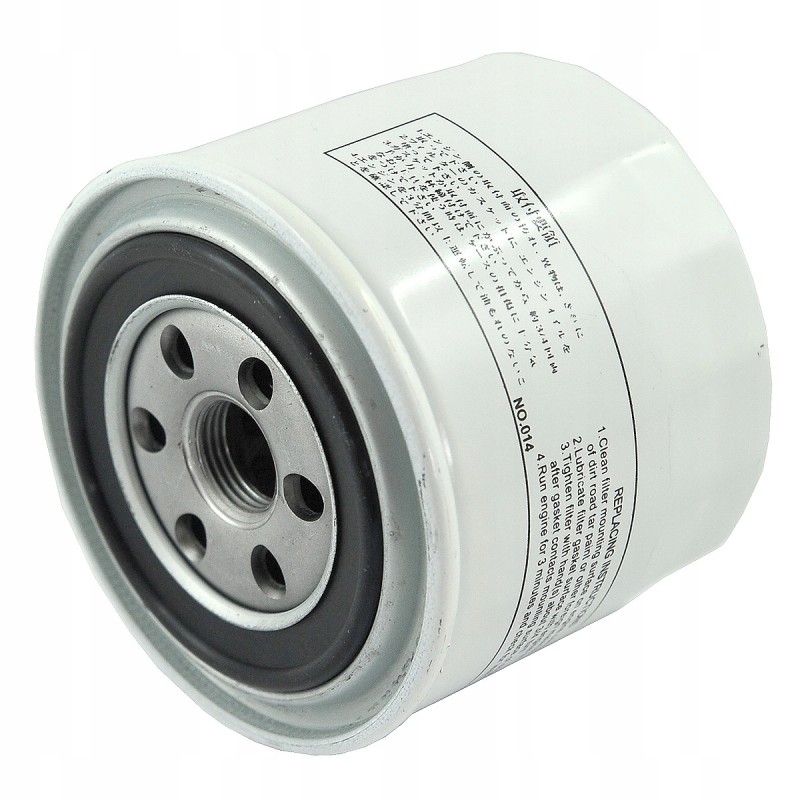

Kubota gl 16414 32430 engine oil filter

Traktor_com_pl offers: Engine oil filter Kubota GL 16414-324304FARMER

Engine oil filter 3/4'-16UNF, height 86 mm, external diameter 95 mm, for Kubota tractors of the Kubota L1-18, Kubota L1-20, Kubota L1-22, Kubota L1-24, Kubota L1-26, Kubota L1-28 series , Kubota L1-185, Kubota L1-195, Kubota L1-205, Kubota L1-215, Kubota L1-225, Kubota L1-235, Kubota L1-245, Kubota L1-255, Kubota L1-265, Kubota L1-275 , Kubota L1-285, Kubota L1-295, Kubota L1-305, Kubota L1-315, Kubota L1-325, Kubota L1802, Kubota L2350, Kubota L2600, Kubota L2601, Kubota L2808, Kubota L3408, Kubota L3408DI , Kubota L3540 DT , Kubota L4200DT, Kubota GL19, Kubota GL21, Kubota GL23, Kubota GL25, Kubota GL26, Kubota GL27, Kubota GL29, Kubota GL32, Kubota GL33, Kubota GL200, Kubota GL201, Kubota GL220, Kubota GL221, Kubota GL240, Kubota GL241, Kubota GL260, Kubota GL261, Kubota GL268, Kubota GL277, Kubota GL280, Kubota GL281, Kubota GL300, Kubota GL301, Kubota GL320, Kubota GL321, Kubota GL337, Kubota GL338, Kubota GT-19, Kubota GT-21, Kubota GT-23 with Kubota V1902, Kubota V1903, Kubota V2003, Kubota V2003 DI, Kubota V2203, Kubota V2203-M-DI, Kubota V2203-M-E2B, Kubota V2403, Kubota V2403-Mi engines.

The engine oil filter is a very important element of the lubrication system and its main task is to clean the oil circulating in the engine system from organic and mineral impurities. The metal, screw-on oil filter is a filter whose main task is to remove the smallest contaminants from the oil, up to 1/50 mm in size. The structure of the filter is very simple and consists of a metal can with thread and a paper insert inside, arranged in the so-called accordion to increase the filtration surface. Contamination of the oil for which we use a filter most often occurs, in the case of organic contaminants, from the breakdown of the oil itself during operation, from fuel residues or from oxidation by-products. Mineral contaminants are air pollutants and metal particles that appear in the engine during operation.

Condition: New

Production: Replacement

Parts: Filters

Height (mm): 86

Diameter (mm): 95

Base diameter (mm): 97

Seal diameter (mm): 54 / 74

Engine model: Kubota V1902, Kubota V2403, Kubota V2003, Kubota V1903

Thread: 3/4'-16UNF

Tractor models: Kubota L1-325, Kubota L1802, Kubota L1-315, Kubota GL337, Kubota L1-20, Kubota GL260, Kubota L2808, Kubota L1 -305, Kubota L2350, Kubota GL261, Kubota GL21, Kubota L1-255, Kubota L1-185, Kubota GL268, Kubota GL23, Kubota L1-205, Kubota GL277, Kubota GL220, Kubota L1-235, Kubota GL280, Kubota GL221, Kubota L1-245, Kubota GL281, Kubota GL240, Kubota L1-265, Kubota GL300, Kubota GL241, Kubota L1-275, Kubota L2600, Kubota GL301, Kubota L1-18, Kubota L1-285, Kubota L4200, Kubota GL321, Kubota GL26, Kubota L1-295, Kubota GL25, Kubota GT19, Kubota GL27, Kubota GL201, Kubota GL200, Kubota GT23, Kubota GL29, Kubota GL320, Kubota L3540, Kubota L1-22, Kubota GL32, Kubota GL33, Kubota GL19, Kubota L1 -24, Kubota L1-195, Kubota GL338, Kubota L2601, Kubota L1-26, Kubota L1-215, Kubota GT21, Kubota L3408, Kubota L1-28, Kubota L1-225

Machine models: Bobcat X225

Comparison numbers: SO6001 , SO 6001

Part number: 5-01-121-16

Original part number (OEM): 16414-32430, HH1C0-32430, HH164-32430, W21ESO1C00

Dimensions:

height: 86 mm,

diameter: 95 mm,

base diameter: 97 mm,

thread: 3/4'-16UNF ,

seal diameter: internal 54 mm, external 74 mm,

original part numbers: 16414-32430, HH1C0-32430, HH164-32430, W21ESO1C00,

comparison numbers: SO 6001,

part numbers: 5-01-121-16.

Tractor models:

Kubota :

Kubota GL19,

Kubota GL21,

Kubota GL23,

Kubota GL25,

Kubota GL26,

Kubota GL27,

Kubota GL29,

Kubota GL32,

Kubota GL33,

Kubota GL200,

Kubota GL201,

Kubota GL220,

Kubota GL221,

Kubota GL240,

Kubota GL241,

Kubota GL260,

Kubota GL261,

Kubota GL268,

Kubota GL277,

Kubota GL280,

Kubota GL281,

Kubota GL300,

Kubota GL301,

Kubota GL320,

Kubota GL321,

Kubota GL337,

Kubota GL338,

Kubota GT19,

Kubota GT21,

Kubota GT23.

Kubota L1-18,

Kubota L1-20,

Kubota L1-22,

Kubota L1-24,

Kubota L1-26,

Kubota L1-28,

Kubota L1-185,

Kubota L1-195,

Kubota L1-205,

Kubota L1-215,

Kubota L1-225,

Kubota L1-235,

Kubota L1-245,

Kubota L1-255,

Kubota L1-265,

Kubota L1-275,

Kubota L1-285,

Kubota L1-295,

Kubota L1-305,

Kubota L1-315,

Kubota L1-325,

Kubota L1802,

Kubota L2350,

Kubota L2600,

Kubota L2601,

Kubota L2808,

Kubota L3408,

Kubota L3408DI ,

Kubota L3540 DT,

Kubota L4200DT.

Bobcat:

Bobcat X225.

Engine models :

Kubota :

Kubota V1902,

Kubota V1903,

Kubota V2003,

Kubota V2003 DI,

Kubota V2203,

Kubota V2203-M-DI,

Kubota V2203-M-E2B,

Kubota V2403,

Kubota V2403-M.

The filter is most often mounted on the side of the engine, and a clean, unused oil filter has a direct impact on the operation and life of the engine, fuel consumption, and in extreme cases, a clogged oil filter may lead to engine overheating and damage to the head gasket. Always replace the oil filter together with the oil change at the frequency specified in the machine's operating instructions.
