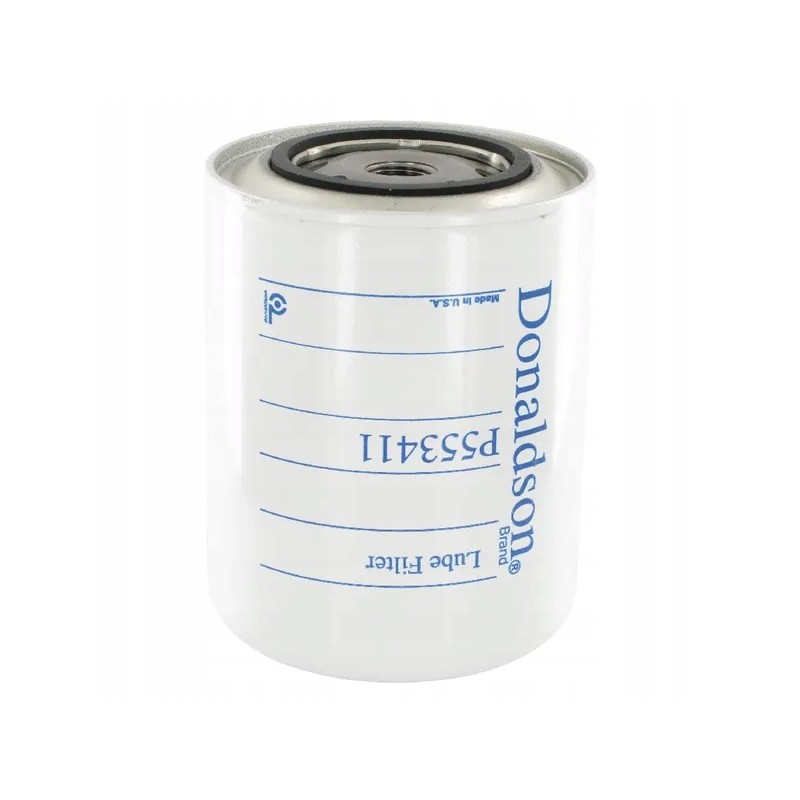

Donaldson P553411 oil filter

Donaldson P553411 oil filter

Features

Outer diameter: 108 mm (4.25 inch)

Thread size: 3/4-16

Length: 148 mm (5.83 inch)

Wed. external seals: 71 mm (2.80 inch)

Wed. internal seals: 62 mm (2.44 inch)

99% efficiency: 40 micron

Std. performance test: SAE J1858

Filter emptying prevention valve: Yes

Bypass valve: Yes

Bypass valve low range setting: 0.8 bar (12 psi)

Bypass valve high setting: 1 bar (15 psi)

Type of filtered medium: Cellulose

Collapse Burst: 6.9 bar (100 psi)

Type: Full Flow

Style: Swirly

Original catalog numbers:

0451104065, 1836106, 1931165, 47128196, 25229C1, 925229C91, 3I1273, 9Y4505, 24151018, 3563591, 5000044487, 572119, 572119 0, 05411880002, 411553001, 01901602, 925229, 114932108, 1621210M1, 1909102

Catalog numbers of replacements:

2862642M1, 2864642MI, 74027979, 84221215, 86546609, 98432642, A800X6714RA, 26540214, 26540215, 2654350, 0003141914, 00035635 91, 24151018, 04115520, 04115530, 04115560, 04145530, 104115530, 244191301, 244193400

Application:

CASE :

/CASE IH JX65 Tractor JX SERIES

/CASE IH JX80U Tractor JX SERIES

/CASE IH JX90U Tractor JX SERIES

/CASE IH JX95 Tractor JX SERIES

New Holland :

100 Tractor - IVECO 8045.25

100-90 Tractor - IVECO 8065.06

1000 Tractor - IVECO 8065

110-90 Tractor - IVECO 8065.05

115-90 Tractor - IVECO 8065.05

1180 Tractor - -1180

1180 Tractor - IVECO 8065.04

1280 Tractor - IVECO 8065.24

300 Tractor - IVECO 8205

3010 Tractor - -3010
