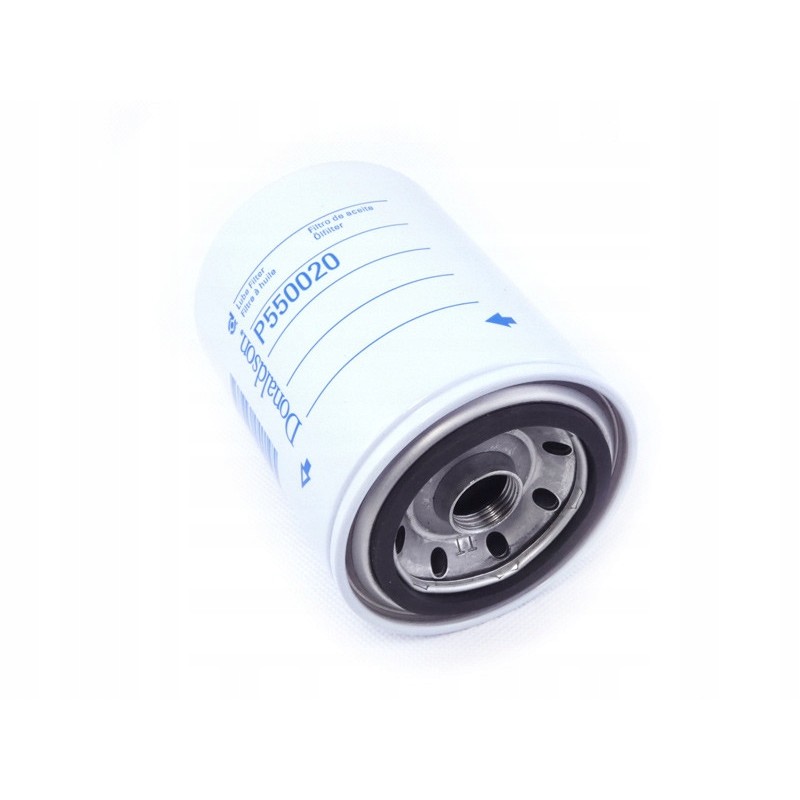

P550020 Donaldson oil filter

Agro Filters Over 10 thousand. filters in our offer.

Welcome to shopping!

Oil filter P550020manufacturer: Donaldson

-

Dimensions in mm:H1: 140

D1: 97

D2: 71

D3: 61

THREAD: 13/16-16 UN

-

No. comparative: LF678, T19044, R78, P550024, P550020, P550599, W936/4, W936/2, SO014, SP4280, PF17, PF28, BT259, 0451104005, 451104005850, 85243, 8524 3MP, K200073, 3I1089, 9Y4450, 6511730, AZL029, FT4580, 2NP550020, 69016709, ML30015, FS19250, 9576P550020, 9613322, PH20, PH20A, DNP550020, 94746, LF340, P340, H15W, H17W09, 353080 30, 38480828, AR58956, AT19044T, T19011, T19044D, T19044T, T19044TH, T19044TL, T1944, 7000014640, 36010678, FP20, LFP20, AW143, FO371/3, OC103, FL175, 998457R91, 1220610, LS168, 6665983, L30015, PC24, PER306, R15, 00031323 02, 3132302, 6005012019, 6005012109, C7910, SFO0678, 2311200, ACI 17002101 , ACI 17002120, WGL678, 77010793, 793, ACI17002101, ACI17002120, , S8700R, 51243WIX, OP647/3, BS03-037,

-

Features

Outer diameter 97 mm (3.82 inch)

Thread size 13/16-16 UN

Length 140 mm (5.51 inch)

Wed. external seals 71 mm (2.80 inch)

Wed. internal seals 61 mm (2.40 inch)

Efficiency 99% 40 micron

Bypass valve Yes

Bypass valve low range setting 1.2 bar (17 psi)

Bypass valve high range setting 1.6 bar (23 psi)

Type of filtered medium Cellulose

Type Full flow

Swirl Style

Main application JOHN DEERE AR58956

-

-

If you would like to receive an invoice, please provide the data needed to issue it!

Original numbers are provided for comparison purposes only.

The above-mentioned parts are spare parts.
