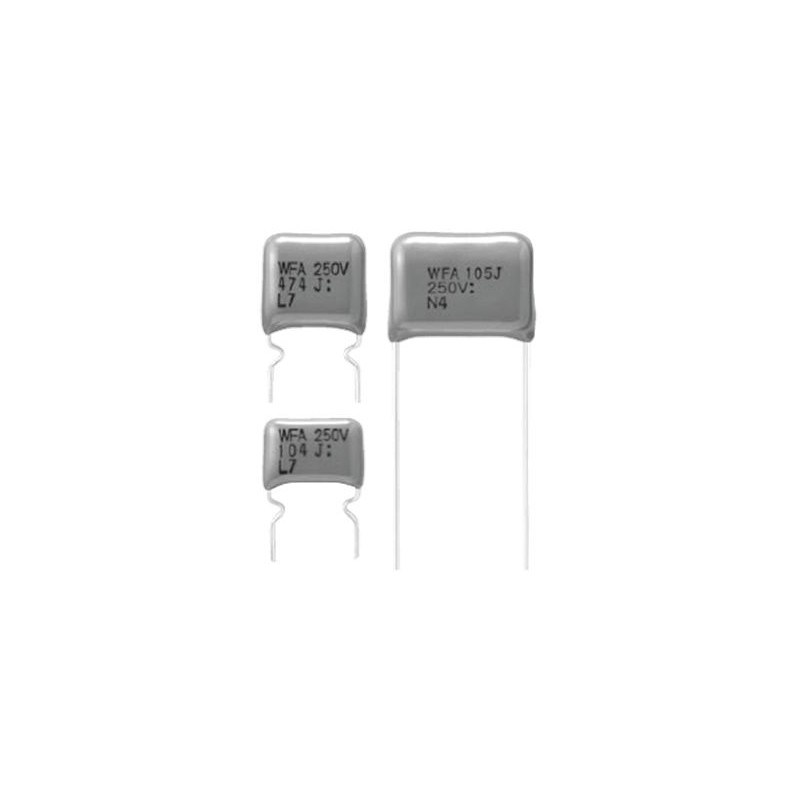

20 pcs - ECWF2W155KA Panasonic ECWF(A) Polypropylene Film Capacitor, 450V dc, ±10%, 1.5μF, Through Hole
    • 20 pcs - ECWF2W155KA Panasonic ECWF(A) Polypropylene Film Capacitor, 450V dc, ±10%, 1.5μF, Through Hole

    20 pcs - ECWF2W155KA Panasonic ECWF(A) Polypropylene Film Capacitor, 450V dc, ±10%, 1.5μF, Through Hole

    20(electronicparts)7270146
    PANASONIC
    20 pcs - ECWF2W155KA Panasonic ECWF(A) Polypropylene Film Capacitor, 450V dc, ±10%, 1.5μF, Through Hole
    £41.68
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Panasonic ECWF(A) Metallised Polypropylene Film CapacitorsPanasonic ECWF(A) film capacitors are a compact solution, designed for high current and high frequency environments. Offering excellent frequency characteristics, they feature low hum noise and feature safety construction technology.Low lossLow noiseCompact size - 50% smaller than the ECQE(H) and ECWF(S) seriesPowder resin coatedLead wire typeApplicationsThese film capacitors are designed for high current and high frequency applications. Suitable uses include 250 V dc and 630 V dc high frequency, high current circuits and 450 V dc active filter circuits.Radial 105°CEncapsulated in self-extinguishing material meeting the requirements of UL94V-0
    Product Details
    PANASONIC
    20(electronicparts)7270146
    ECWF2W155KA
    10 Items

    Data sheet

    Manufacturer
    PANASONIC
    Capacitance
    1.5µF
    Tolerance
    ±10%
    Dimensions
    18.8 x 10.7 x 15.8mm
    Height
    15.8mm
    Length
    18.8mm
    Depth
    10.7mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    ECWF(A)
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +105°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -40°C
    Voltage
    450V dc
    Lead Pitch
    15mm
    Lead Diameter
    0.8mm
