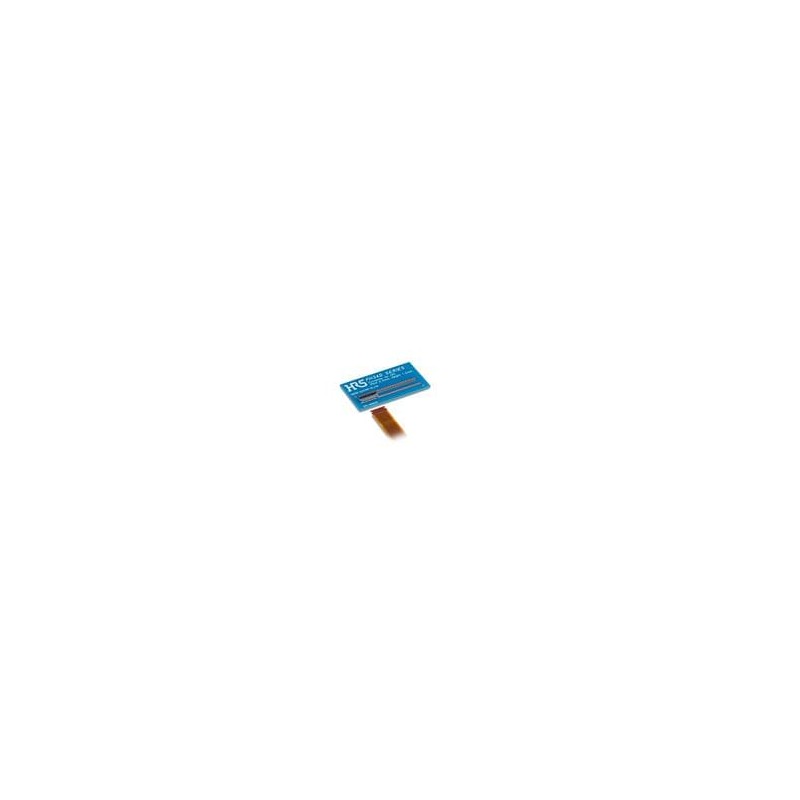

    1 pcs : FH34D-10S-0.5SH(50) - FFC & FPC Connectors 10 Position FFC, FPC Connector Contacts, Top 0.020' (0.50mm) Surface Mount, R
    • 1 pcs : FH34D-10S-0.5SH(50) - FFC & FPC Connectors 10 Position FFC, FPC Connector Contacts, Top 0.020' (0.50mm) Surface Mount, R

    1 pcs : FH34D-10S-0.5SH(50) - FFC & FPC Connectors 10 Position FFC, FPC Connector Contacts, Top 0.020' (0.50mm) Surface Mount, R

    electronicparts-UK/M/798-FH34D10S05SH50
    £9.86
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    FH34 FPC/FFC ZIF Connectors Hirose FH34 FPC/FFC ZIF Connectors are 0.5mm pitch low-profile connectors with a height of 1.0mm above the board and a width of 3.8mm, making them ideal for space-saving applications. These back-flip connectors are compatible with 0.3mm thick FPC/FFC and feature both upper and lower contacts. The FH34SRJ series provides increased FPC/FFC retention horizontally and vertically than other connectors with similar construction. The FH34D connectors come with tabs for improved FPC retention force. Hirose FH34 series connectors are delivered with the lock open, so there is no need to open the actuator before working.
    Product Details
    Hirose Connector
    electronicparts-UK/M/798-FH34D10S05SH50
    FH34D-10S-0.5SH(50)
    10 Items

    Data sheet

    Manufacturer
    Hirose Electric
    Current rating
    500 mA
    Contact material
    phosphor bronze
    Contact plating
    Gold
    Number of positions
    10 Position
    Series
    FH34D
    Accessory Type
    -
    Voltage Rating
    50 V
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 55 C
    Mounting Style
    SMD/SMT
    Housing Material
    Liquid Crystal Polymer (LCP)
    Gender
    Female
    Product Type
    FFC & FPC Connectors
    Actuation Type
    ZIF
    Pitch
    0.5 mm
    Termination Style
    SMD/SMT
    Product Category
    FFC & FPC Connectors
    Flammability Rating
    UL 94 V-0
    Packaging
    Cut Tape
    RoHS
    Details
    Brand
    Hirose Connector
    Product
    Receptacles
    Factory Pack Quantity Factory Pack Quantity
    5000
    Subcategory
    FFC & FPC Connectors
    Unit Weight
    46 mg
    Part # Aliases
    580-1270-0-50
    Mounting Angle
    Right Angle
    Contact Location
    Top Contact
