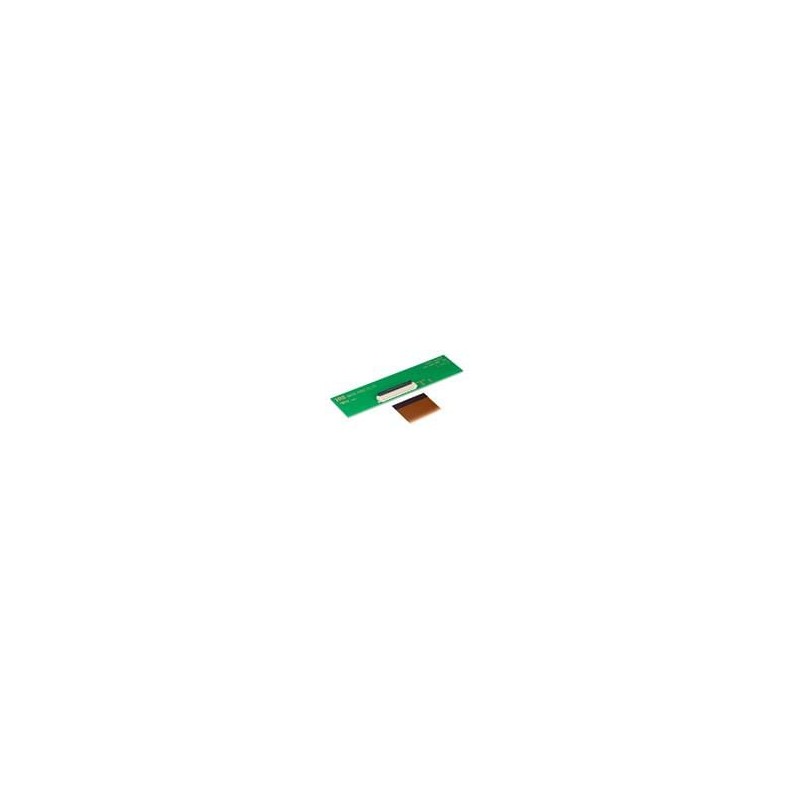

    1 pcs : TF07V-30S-0.5SH(800) - FFC & FPC Connectors Receptacle, 0.5mm pitch, 30pos., top&bottom contact
    • 1 pcs : TF07V-30S-0.5SH(800) - FFC & FPC Connectors Receptacle, 0.5mm pitch, 30pos., top&bottom contact

    1 pcs : TF07V-30S-0.5SH(800) - FFC & FPC Connectors Receptacle, 0.5mm pitch, 30pos., top&bottom contact

    electronicparts-UK/M/798-TF07V30S0.5SH800
    £8.96
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    TF07V Series FPC/FFC Connectors Hirose Electric TF07V Series FPC/FFC Connectors offer a 0.5mm pitch, a height of just 2.1mm, and are suitable for confined spaces in industrial robotics. TF07V connectors feature a dual-contact functionality that simplifies flex routing in medical applications, while the superior retention force makes them reliable for the intricate assemblies of consumer electronics. Various module designs are available with top and bottom contact designs, and the actuator design prevents separation from the connector body. Hirose Electric TF07V Series FPC/FFC Connectors have a suitable FPC/FFC standard thickness of 0.3mm ±0.03mm and are delivered with the actuator open for easy two-step mating.
    Product Details
    Hirose Connector
    electronicparts-UK/M/798-TF07V30S0.5SH800
    TF07V-30S-0.5SH(800)
    10 Items

    Data sheet

    Manufacturer
    Hirose Electric
    Current rating
    500 mA
    Contact material
    phosphor bronze
    Contact plating
    Gold
    Number of positions
    30 Position
    Series
    TF07V
    Voltage Rating
    50 VAC/DC
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Housing Material
    Liquid Crystal Polymer (LCP)
    Gender
    Female
    Product Type
    FFC & FPC Connectors
    Actuation Type
    Back Flip
    Pitch
    0.5 mm
    Termination Style
    Solder Pin
    Product Category
    FFC & FPC Connectors
    Flammability Rating
    UL 94 V-0
    Packaging
    Cut Tape
    RoHS
    Details
    Brand
    Hirose Connector
    Product
    Receptacles
    Factory Pack Quantity Factory Pack Quantity
    1500
    Subcategory
    FFC & FPC Connectors
    Unit Weight
    309 mg
    Mounting Angle
    Horizontal
    Contact Location
    Bottom Contact
    Insulation Resistance
    100 MOhms
