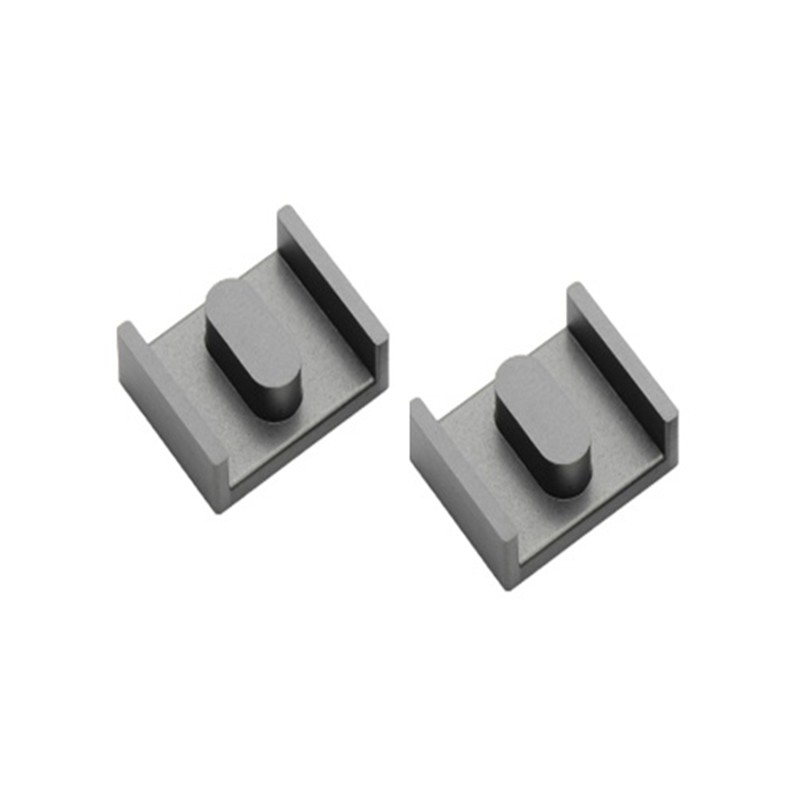

    10 pcs : PC95EL25X8.6-Z - FERRITE CORE EL 7.54UH PCS95 2PC
    • 10 pcs : PC95EL25X8.6-Z - FERRITE CORE EL 7.54UH PCS95 2PC

    10 pcs : PC95EL25X8.6-Z - FERRITE CORE EL 7.54UH PCS95 2PC

    10electronicpartsUK445180863ND
    £64.25
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated PC95 Ferrite Core EL Type 0.984' (25.00mm) Length 0.787' (20.00mm) Width Diameter 0.169' (4.29mm) Height
    Product Details
    TDK Corporation
    10electronicpartsUK445180863ND
    PC95EL25X8.6-Z
    3 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    PC95
    Width
    0.787' (20.00mm)
    Height
    0.169' (4.29mm)
    Length
    0.984' (25.00mm)
    Series
    Planar
    Finish
    Uncoated
    Core Type
    EL
    Packaging
    Tray
    Supplier Device Package
    EL 25 x 8.6
    Gap
    Ungapped
    Inductance Factor (Al)
    7.54 µH
    Effective Length (le) mm
    30
    Effective Area (Ae) mm²
    85.6
    Core Factor (ΣI/A) mm⁻¹
    0.35
    Effective Magnetic Volume (Ve) mm³
    2570
    Minimum Core Cross Section (Amin) mm²
    83
