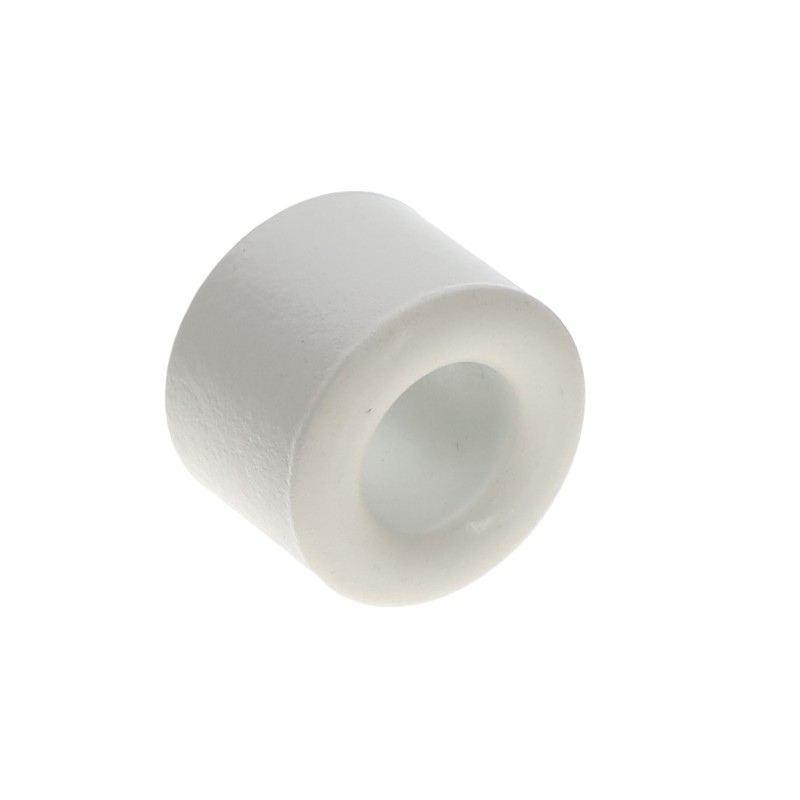

    10 pcs : TX26/15/20-3E12 - FERRITE CORE TOROID
    • 10 pcs : TX26/15/20-3E12 - FERRITE CORE TOROID

    10 pcs : TX26/15/20-3E12 - FERRITE CORE TOROID

    10AllpartsUK17791595ND
    FERROXCUBE
    £57.25
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Epoxy Ferrite Core Toroid Type Length Width 1.061' (26.95mm) Diameter 0.827' (21.00mm) Height
    Product Details
    FERROXCUBE
    10AllpartsUK17791595ND
    TX26/15/20-3E12
    3 Items

    Data sheet

    Manufacturer
    FERROXCUBE
    Tolerance
    ±30%
    Part status
    Active
    Diameter
    1.061' (26.95mm)
    Width
    -
    Height
    0.827' (21.00mm)
    Length
    -
    Series
    -
    Finish
    Epoxy
    Core Type
    Toroid
    Packaging
    Bulk
    Supplier Device Package
    TX 26 x 15 x 20
    Gap
    Ungapped
    Effective Permeability (µe)
    12000
    Effective Length (le) mm
    60.1
    Effective Area (Ae) mm²
    112
    Core Factor (ΣI/A) mm⁻¹
    0.538
    Effective Magnetic Volume (Ve) mm³
    6720
