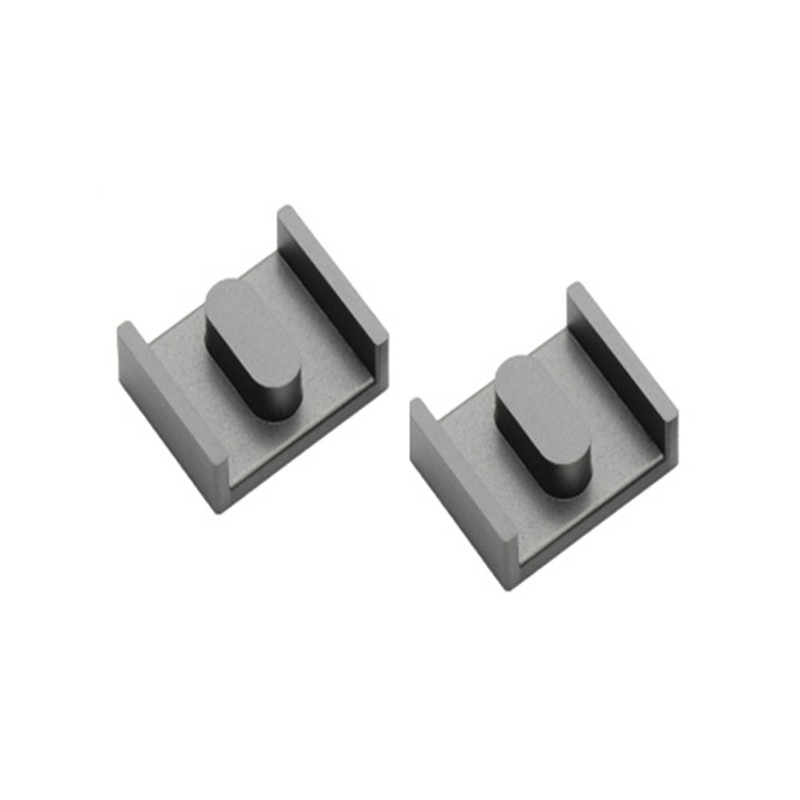

    10 pcs : PC95EL20X7.7-Z - FERRITE CORE EL 5.63UH PCS95 2PC
    • 10 pcs : PC95EL20X7.7-Z - FERRITE CORE EL 5.63UH PCS95 2PC

    10 pcs : PC95EL20X7.7-Z - FERRITE CORE EL 5.63UH PCS95 2PC

    10electronicpartsUK445180861ND
    £53.00
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated PC95 Ferrite Core EL Type 0.787' (20.00mm) Length 0.630' (16.00mm) Width Diameter 0.151' (3.83mm) Height
    Product Details
    TDK Corporation
    10electronicpartsUK445180861ND
    PC95EL20X7.7-Z
    3 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    PC95
    Width
    0.630' (16.00mm)
    Height
    0.151' (3.83mm)
    Length
    0.787' (20.00mm)
    Series
    Planar
    Finish
    Uncoated
    Core Type
    EL
    Packaging
    Tray
    Supplier Device Package
    EL 20 x 7.7
    Gap
    Ungapped
    Inductance Factor (Al)
    5.63 µH
    Effective Length (le) mm
    54.6
    Effective Area (Ae) mm²
    25.6
    Core Factor (ΣI/A) mm⁻¹
    0.47
    Effective Magnetic Volume (Ve) mm³
    1400
    Minimum Core Cross Section (Amin) mm²
    52.9
