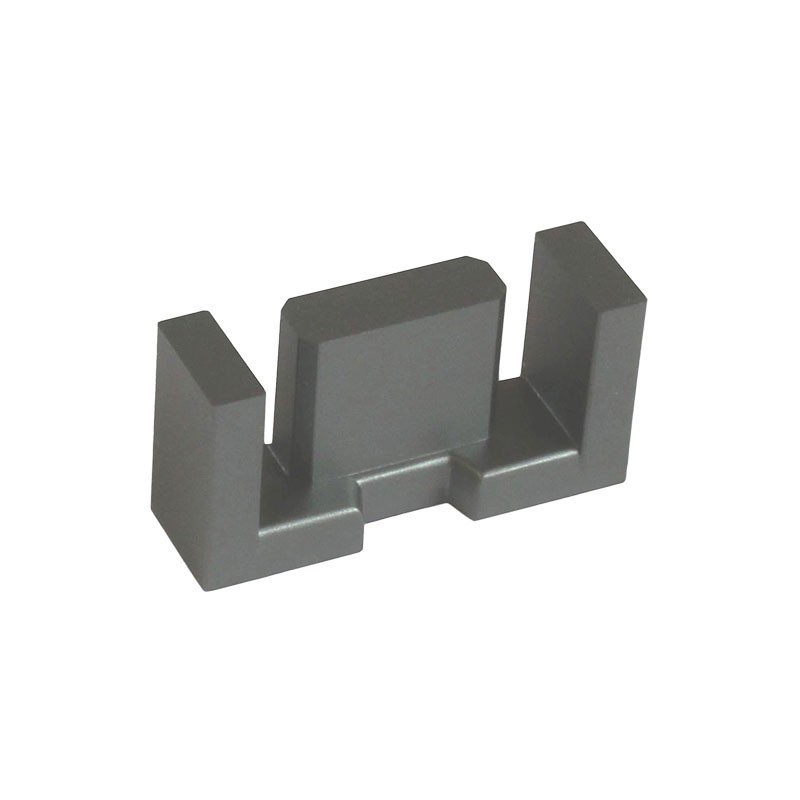

    10 pcs : EFD15/8/5-3F46-S - FERRITE CORE EFD 3F46 2PC SET
    • 10 pcs : EFD15/8/5-3F46-S - FERRITE CORE EFD 3F46 2PC SET

    10 pcs : EFD15/8/5-3F46-S - FERRITE CORE EFD 3F46 2PC SET

    10AllpartsUK17791075ND
    FERROXCUBE
    £51.25
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated 3F46 Ferrite Core EFD Type 0.591' (15.00mm) Length 0.183' (4.65mm) Width Diameter 0.295' (7.50mm) Height
    Product Details
    FERROXCUBE
    10AllpartsUK17791075ND
    EFD15/8/5-3F46-S
    3 Items

    Data sheet

    Manufacturer
    FERROXCUBE
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    3F46
    Width
    0.183' (4.65mm)
    Height
    0.295' (7.50mm)
    Length
    0.591' (15.00mm)
    Series
    -
    Finish
    Uncoated
    Core Type
    EFD
    Packaging
    Bulk
    Supplier Device Package
    EFD 15 x 8 x 5
    Gap
    Ungapped
    Effective Permeability (µe)
    667
    Effective Length (le) mm
    34
    Effective Area (Ae) mm²
    15
    Core Factor (ΣI/A) mm⁻¹
    2.27
    Effective Magnetic Volume (Ve) mm³
    510
    Minimum Core Cross Section (Amin) mm²
    12.2
