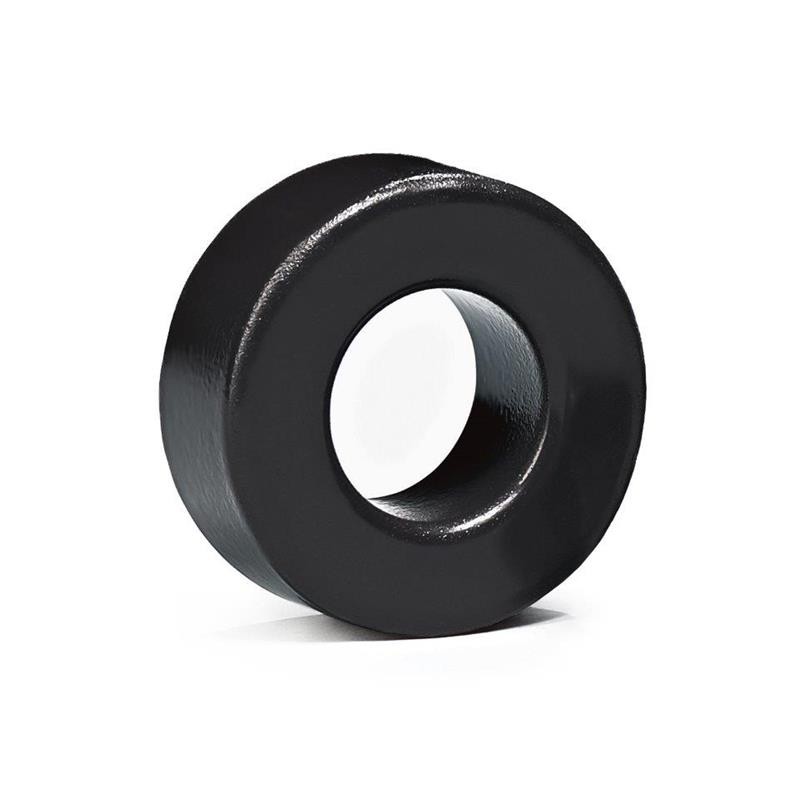

10 pcs : 0077140A7 - FERRITE CORE TOROID 26NH KOOL MU
    • 10 pcs : 0077140A7 - FERRITE CORE TOROID 26NH KOOL MU

    10 pcs : 0077140A7 - FERRITE CORE TOROID 26NH KOOL MU

    10AllpartsUK46160077140A7ND
    £50.50
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Coated Kool Mu Ferrite Core Toroid Type Length Width 0.165' (4.19mm) Diameter 0.085' (2.16mm) Height
    Product Details
    10AllpartsUK46160077140A7ND
    0077140A7
    3 Items

    Data sheet

    Manufacturer
    Magnetics, a division of Spang & Co.
    Tolerance
    ±15%
    Part status
    Active
    Diameter
    0.165' (4.19mm)
    Material
    Kool Mu
    Width
    -
    Height
    0.085' (2.16mm)
    Length
    -
    Series
    -
    Finish
    Coated
    Core Type
    Toroid
    Packaging
    Bulk
    Supplier Device Package
    -
    Gap
    Ungapped
    Inductance Factor (Al)
    26 nH
    Effective Length (le) mm
    8.06
    Effective Area (Ae) mm²
    1.3
    Effective Magnetic Volume (Ve) mm³
    10
    Initial Permeability (µi)
    125
