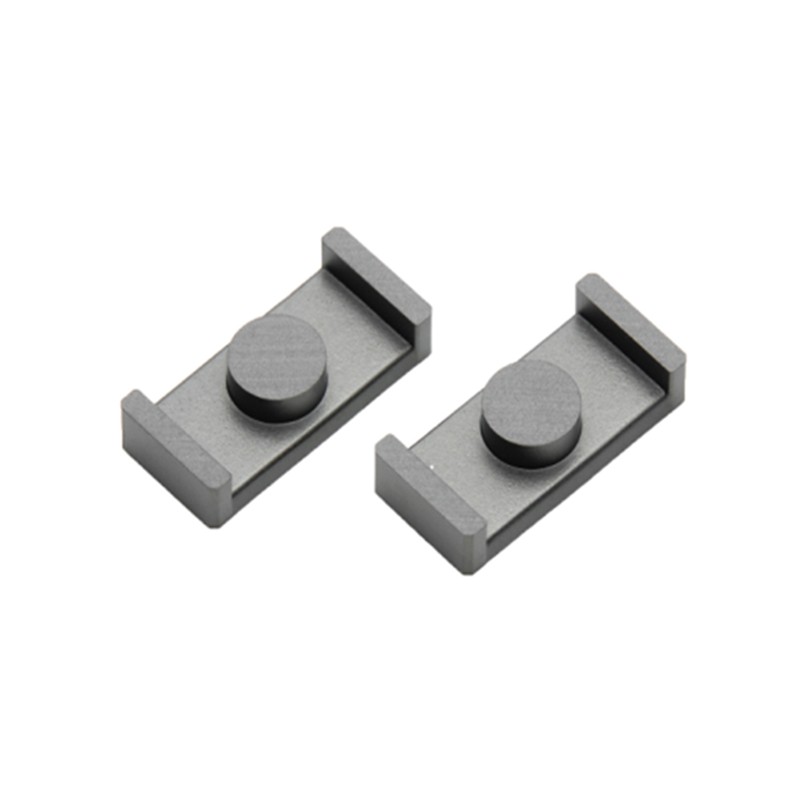

    10 pcs : PC95ER25/5.5/18-Z - FERRITE CORE ER 4.4UH PCS95 2PC
    • 10 pcs : PC95ER25/5.5/18-Z - FERRITE CORE ER 4.4UH PCS95 2PC

    10 pcs : PC95ER25/5.5/18-Z - FERRITE CORE ER 4.4UH PCS95 2PC

    10electronicpartsUK445180883ND
    £48.50
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated PC95 Ferrite Core ER Type 0.996' (25.30mm) Length 0.709' (18.00mm) Width Diameter 0.108' (2.75mm) Height
    Product Details
    TDK Corporation
    10electronicpartsUK445180883ND
    PC95ER25/5.5/18-Z
    3 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    PC95
    Width
    0.709' (18.00mm)
    Height
    0.108' (2.75mm)
    Length
    0.996' (25.30mm)
    Series
    Planar
    Finish
    Uncoated
    Core Type
    ER
    Packaging
    Tray
    Supplier Device Package
    ER 25 x 5.5 x 18
    Gap
    Ungapped
    Inductance Factor (Al)
    4.4 µH
    Effective Length (le) mm
    53.7
    Effective Area (Ae) mm²
    26.1
    Core Factor (ΣI/A) mm⁻¹
    0.49
    Effective Magnetic Volume (Ve) mm³
    1400
    Minimum Core Cross Section (Amin) mm²
    38.5
