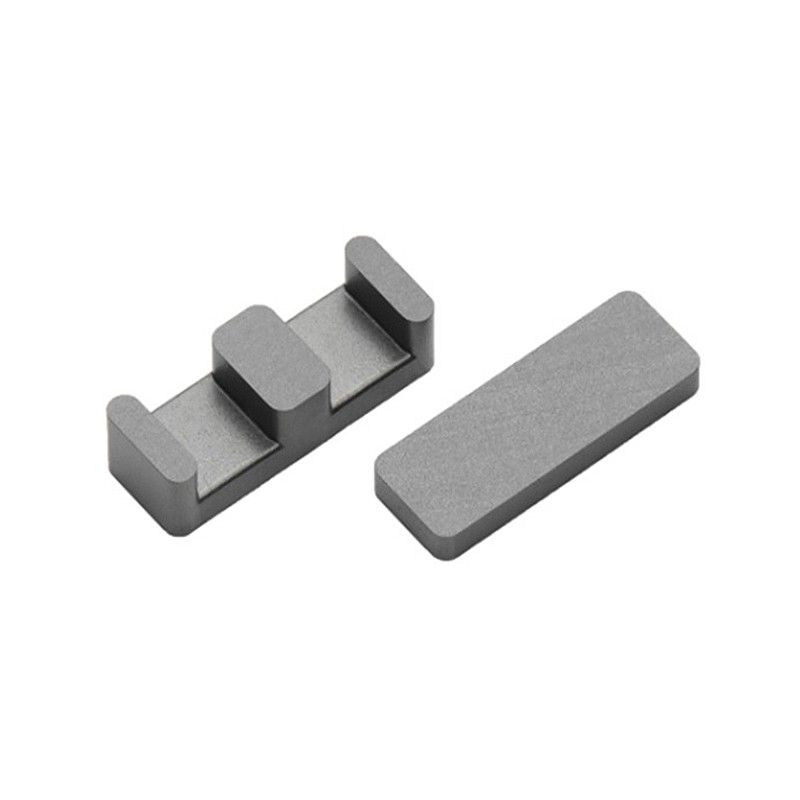

    10 pcs : PC95EI18/6/10-Z - FERRITE COR HE 4.72UH PCS95 1SET
    • 10 pcs : PC95EI18/6/10-Z - FERRITE COR HE 4.72UH PCS95 1SET

    10 pcs : PC95EI18/6/10-Z - FERRITE COR HE 4.72UH PCS95 1SET

    10electronicpartsUK445180885ND
    £54.56
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated PC95 Ferrite Core HE, PLT Type 0.709' (18.00mm) Length 0.394' (10.00mm) Width Diameter 0.236' (6.00mm) Height
    Product Details
    TDK Corporation
    10electronicpartsUK445180885ND
    PC95EI18/6/10-Z
    3 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    PC95
    Width
    0.394' (10.00mm)
    Height
    0.236' (6.00mm)
    Length
    0.709' (18.00mm)
    Series
    Planar
    Finish
    Uncoated
    Core Type
    HE, PLT
    Packaging
    Tray
    Supplier Device Package
    EI 18 x 6 x 10
    Gap
    Ungapped
    Inductance Factor (Al)
    4.72 µH
    Effective Length (le) mm
    40
    Effective Area (Ae) mm²
    20.3
    Core Factor (ΣI/A) mm⁻¹
    0.51
    Effective Magnetic Volume (Ve) mm³
    811
    Minimum Core Cross Section (Amin) mm²
    40
