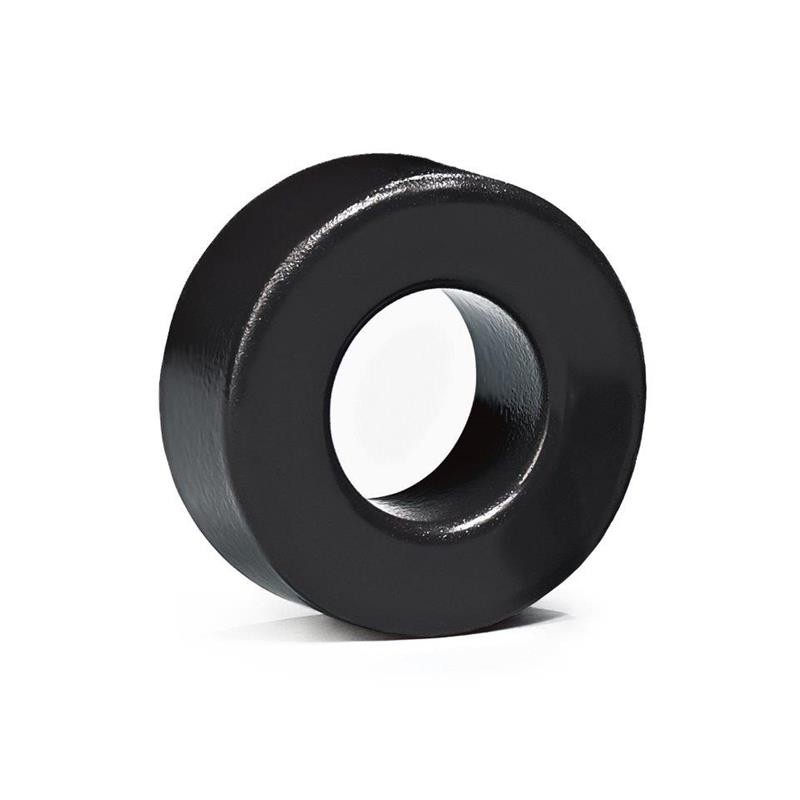

10 pcs : 0077894A7HT15 - FERRITE CORE TOROID 94NH KOOL MU
    • 10 pcs : 0077894A7HT15 - FERRITE CORE TOROID 94NH KOOL MU

    10 pcs : 0077894A7HT15 - FERRITE CORE TOROID 94NH KOOL MU

    10AllpartsUK46160077894A7HT15ND
    £53.01
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Coated Kool Mu Ferrite Core Toroid Type Length Width 1.090' (27.69mm) Diameter 0.591' (15.00mm) Height
    Product Details
    10AllpartsUK46160077894A7HT15ND
    0077894A7HT15
    3 Items

    Data sheet

    Manufacturer
    Magnetics, a division of Spang & Co.
    Tolerance
    ±8%
    Part status
    Active
    Diameter
    1.090' (27.69mm)
    Material
    Kool Mu
    Width
    -
    Height
    0.591' (15.00mm)
    Length
    -
    Series
    -
    Finish
    Coated
    Core Type
    Toroid
    Packaging
    Bulk
    Supplier Device Package
    -
    Gap
    Ungapped
    Inductance Factor (Al)
    94 nH
    Effective Length (le) mm
    63.5
    Effective Area (Ae) mm²
    82.1
    Effective Magnetic Volume (Ve) mm³
    5210
    Initial Permeability (µi)
    60
