    10 pcs : PC95EIR18/5/12-Z - FERRITE CORE HER 3.69UH 1SET
    • 10 pcs : PC95EIR18/5/12-Z - FERRITE CORE HER 3.69UH 1SET

    10 pcs : PC95EIR18/5/12-Z - FERRITE CORE HER 3.69UH 1SET

    10electronicpartsUK445180875ND
    £52.70
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description

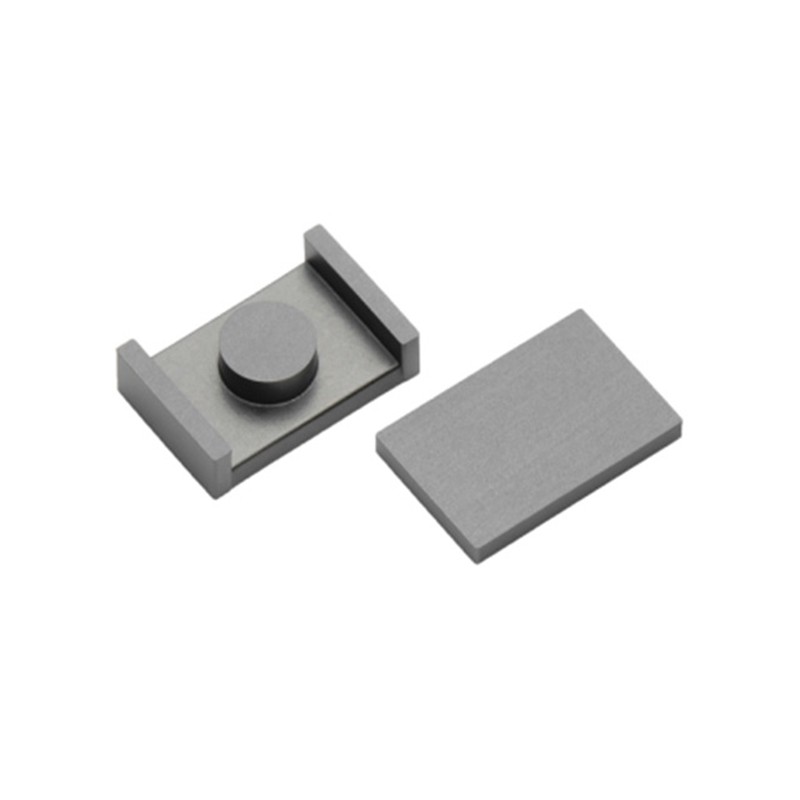

    Uncoated PC95 Ferrite Core HER, PLT Type 0.715' (18.15mm) Length 0.472' (12.00mm) Width Diameter 0.197' (5.00mm) Height
    Product Details
    TDK Corporation
    10electronicpartsUK445180875ND
    PC95EIR18/5/12-Z
    3 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    PC95
    Width
    0.472' (12.00mm)
    Height
    0.197' (5.00mm)
    Length
    0.715' (18.15mm)
    Series
    Planar
    Finish
    Uncoated
    Core Type
    HER, PLT
    Packaging
    Tray
    Supplier Device Package
    EI 18 x 5 x 12
    Gap
    Ungapped
    Inductance Factor (Al)
    3.69 µH
    Effective Length (le) mm
    32.8
    Effective Area (Ae) mm²
    19.7
    Core Factor (ΣI/A) mm⁻¹
    0.6
    Effective Magnetic Volume (Ve) mm³
    645
    Minimum Core Cross Section (Amin) mm²
    28.3
