    10 pcs : PC95ER22/5.5/15-Z - FERRITE CORE ER 4.3UH PCS95 2PC
    • 10 pcs : PC95ER22/5.5/15-Z - FERRITE CORE ER 4.3UH PCS95 2PC

    10 pcs : PC95ER22/5.5/15-Z - FERRITE CORE ER 4.3UH PCS95 2PC

    10electronicpartsUK445PC95ER225515ZND
    £50.84
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description

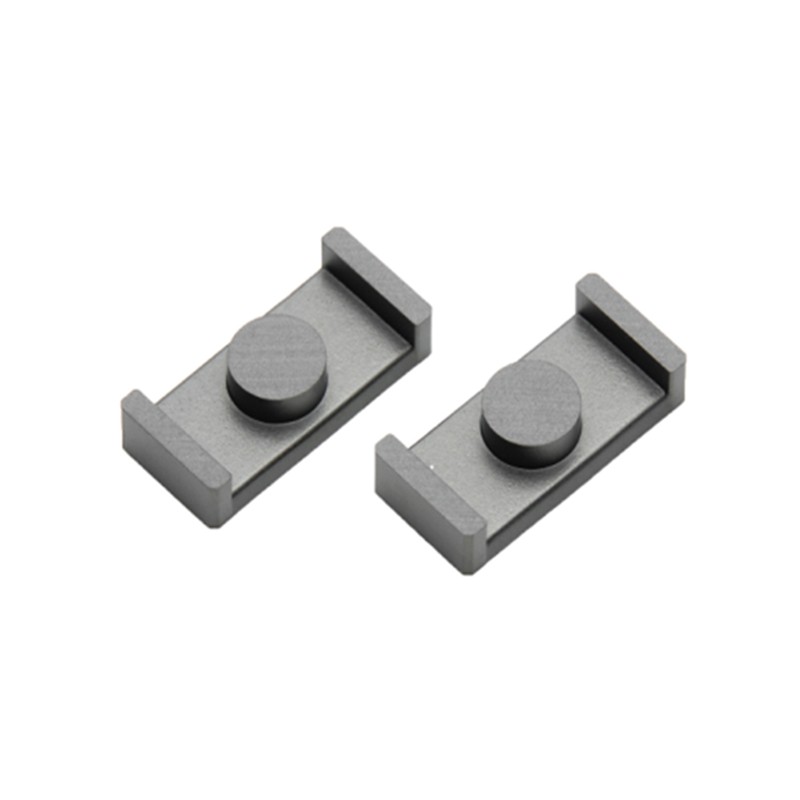

    Uncoated PC95 Ferrite Core ER Type 0.870' (22.10mm) Length 0.600' (15.25mm) Width Diameter 0.108' (2.75mm) Height
    Product Details
    TDK Corporation
    10electronicpartsUK445PC95ER225515ZND
    PC95ER22/5.5/15-Z
    3 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    PC95
    Width
    0.600' (15.25mm)
    Height
    0.108' (2.75mm)
    Length
    0.870' (22.10mm)
    Series
    Planar
    Finish
    Uncoated
    Core Type
    ER
    Packaging
    Tray
    Supplier Device Package
    ER 22 x 5.5 x 15
    Gap
    Ungapped
    Inductance Factor (Al)
    4.3 µH
    Effective Length (le) mm
    46.1
    Effective Area (Ae) mm²
    23.2
    Core Factor (ΣI/A) mm⁻¹
    0.51
    Effective Magnetic Volume (Ve) mm³
    1070
    Minimum Core Cross Section (Amin) mm²
    36.3
