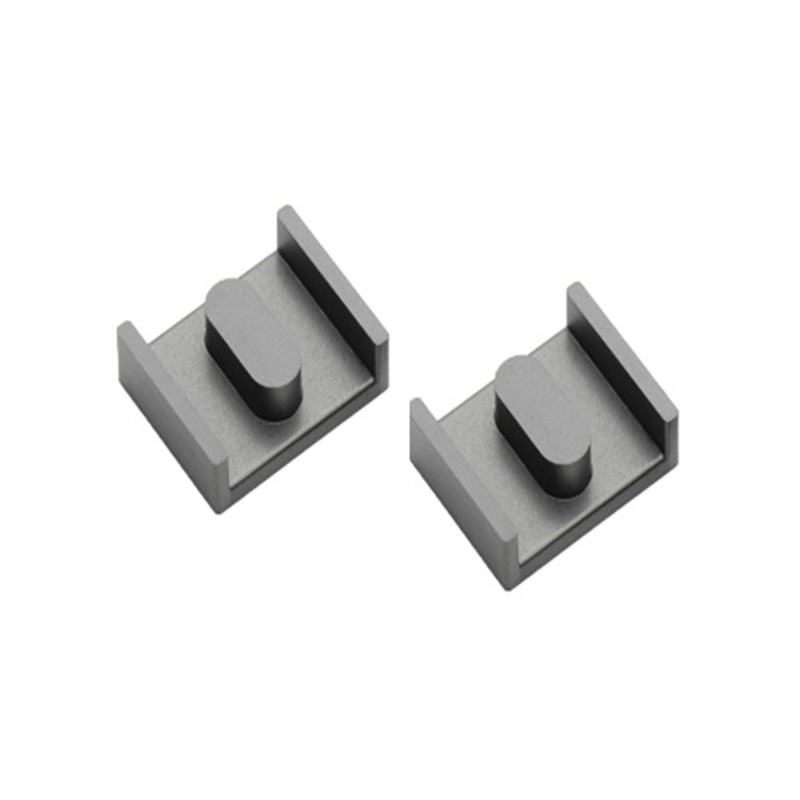

    10 pcs : PC95EL15.5X5.8-Z - FERRITE CORE EL 3.68UH PCS95 2PC
    • 10 pcs : PC95EL15.5X5.8-Z - FERRITE CORE EL 3.68UH PCS95 2PC

    10 pcs : PC95EL15.5X5.8-Z - FERRITE CORE EL 3.68UH PCS95 2PC

    10electronicpartsUK445180859ND
    £48.98
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated PC95 Ferrite Core EL Type 0.610' (15.50mm) Length 0.488' (12.40mm) Width Diameter 0.115' (2.92mm) Height
    Product Details
    TDK Corporation
    10electronicpartsUK445180859ND
    PC95EL15.5X5.8-Z
    3 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    PC95
    Width
    0.488' (12.40mm)
    Height
    0.115' (2.92mm)
    Length
    0.610' (15.50mm)
    Series
    Planar
    Finish
    Uncoated
    Core Type
    EL
    Packaging
    Tray
    Supplier Device Package
    EI 15.5 x 5.8
    Gap
    Ungapped
    Inductance Factor (Al)
    3.68 µH
    Effective Length (le) mm
    32.9
    Effective Area (Ae) mm²
    19.6
    Core Factor (ΣI/A) mm⁻¹
    0.6
    Effective Magnetic Volume (Ve) mm³
    646
    Minimum Core Cross Section (Amin) mm²
    31.9
