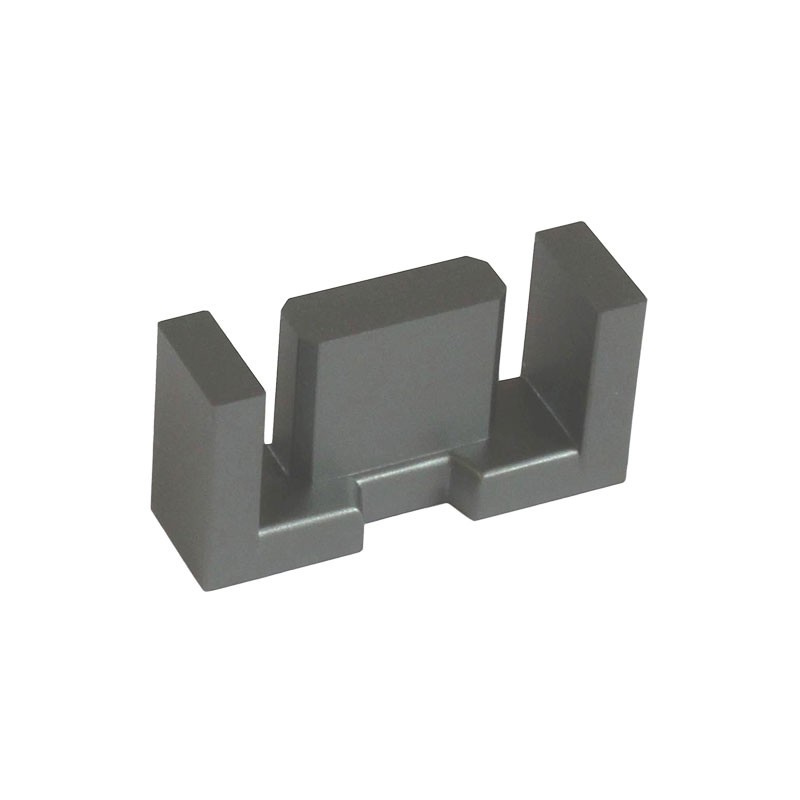

    10 pcs : EFD12/6/3.5-3F36-S - FERRITE CORE EFD 3F36 2PC SET
    • 10 pcs : EFD12/6/3.5-3F36-S - FERRITE CORE EFD 3F36 2PC SET

    10 pcs : EFD12/6/3.5-3F36-S - FERRITE CORE EFD 3F36 2PC SET

    10AllpartsUK17791072ND
    FERROXCUBE
    £48.67
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated 3F36 Ferrite Core EFD Type 0.492' (12.50mm) Length 0.138' (3.50mm) Width Diameter 0.244' (6.20mm) Height
    Product Details
    FERROXCUBE
    10AllpartsUK17791072ND
    EFD12/6/3.5-3F36-S
    3 Items

    Data sheet

    Manufacturer
    FERROXCUBE
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    3F36
    Width
    0.138' (3.50mm)
    Height
    0.244' (6.20mm)
    Length
    0.492' (12.50mm)
    Series
    -
    Finish
    Uncoated
    Core Type
    EFD
    Packaging
    Bulk
    Supplier Device Package
    EFD 12 x 6 x 3.5
    Gap
    Ungapped
    Effective Permeability (µe)
    1130
    Effective Length (le) mm
    28.5
    Effective Area (Ae) mm²
    11.4
    Core Factor (ΣI/A) mm⁻¹
    2.5
    Effective Magnetic Volume (Ve) mm³
    325
    Minimum Core Cross Section (Amin) mm²
    10.7
