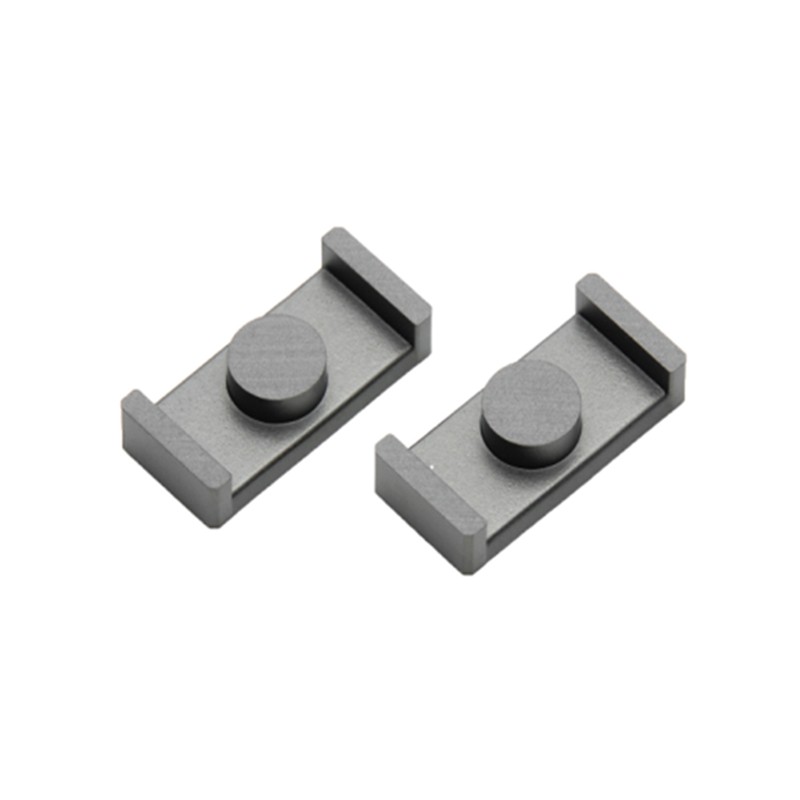

    10 pcs : PC95ER18/5/12-Z - FERRITE CORE ER 3.5UH PCS95 2PC
    • 10 pcs : PC95ER18/5/12-Z - FERRITE CORE ER 3.5UH PCS95 2PC

    10 pcs : PC95ER18/5/12-Z - FERRITE CORE ER 3.5UH PCS95 2PC

    10electronicpartsUK445180881ND
    £44.02
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated PC95 Ferrite Core ER Type 0.715' (18.15mm) Length 0.472' (12.00mm) Width Diameter 0.098' (2.50mm) Height
    Product Details
    TDK Corporation
    10electronicpartsUK445180881ND
    PC95ER18/5/12-Z
    3 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    PC95
    Width
    0.472' (12.00mm)
    Height
    0.098' (2.50mm)
    Length
    0.715' (18.15mm)
    Series
    Planar
    Finish
    Uncoated
    Core Type
    ER
    Packaging
    Tray
    Supplier Device Package
    ER 18 x 5 x 12
    Gap
    Ungapped
    Inductance Factor (Al)
    3.5 µH
    Effective Length (le) mm
    32.8
    Effective Area (Ae) mm²
    19.7
    Core Factor (ΣI/A) mm⁻¹
    0.6
    Effective Magnetic Volume (Ve) mm³
    645
    Minimum Core Cross Section (Amin) mm²
    28.3
