Description

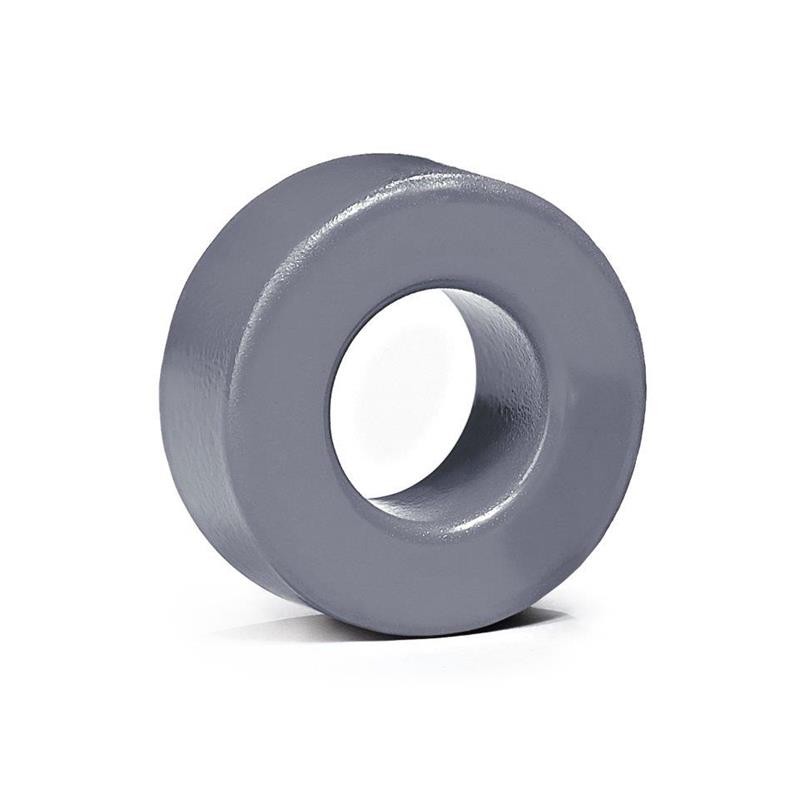

Epoxy Ferrite Core Toroid Type Length Width 0.870' (22.10mm) Diameter 0.500' (12.70mm) Height
Product Details
10AllpartsUK4616ZW42212TCND
ZW42212TC
3 Items
Data sheet
- Manufacturer
- Magnetics, a division of Spang & Co.
- Tolerance
- ±30%
- Part status
- Active
- Diameter
- 0.870' (22.10mm)
- Material
- -
- Width
- -
- Height
- 0.500' (12.70mm)
- Length
- -
- Series
- -
- Finish
- Epoxy
- Core Type
- Toroid
- Packaging
- Bulk
- Supplier Device Package
- -
- Gap
- Ungapped
- Inductance Factor (Al)
- 12.08 µH
- Effective Length (le) mm
- 54.1
- Effective Area (Ae) mm²
- 52.3
- Effective Magnetic Volume (Ve) mm³
- 2834
- Initial Permeability (µi)
- 10000
