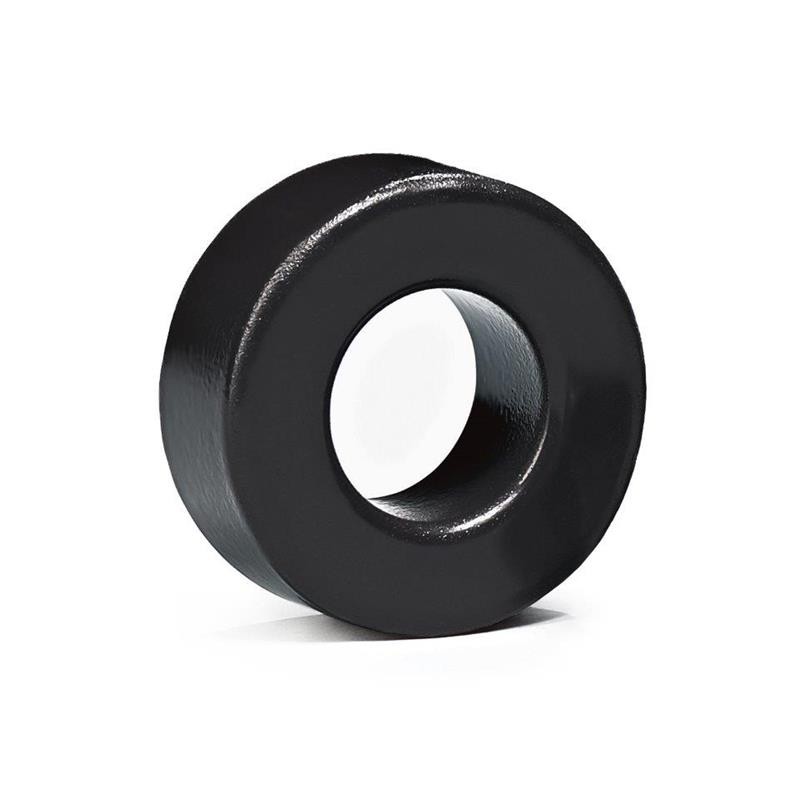

10 pcs : 0077120A7 - FERRITE CORE TOROID 72NH KOOL MU
    • 10 pcs : 0077120A7 - FERRITE CORE TOROID 72NH KOOL MU

    10 pcs : 0077120A7 - FERRITE CORE TOROID 72NH KOOL MU

    10AllpartsUK46160077120A7ND
    £32.55
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Coated Kool Mµ Ferrite Core Toroid Type Length Width 0.653' (16.59mm) Diameter 0.250' (6.35mm) Height
    Product Details
    10AllpartsUK46160077120A7ND
    0077120A7
    3 Items

    Data sheet

    Manufacturer
    Magnetics, a division of Spang & Co.
    Tolerance
    ±8%
    Part status
    Active
    Diameter
    0.653' (16.59mm)
    Material
    Kool Mµ
    Width
    -
    Height
    0.250' (6.35mm)
    Length
    -
    Series
    -
    Finish
    Coated
    Core Type
    Toroid
    Packaging
    Bulk
    Supplier Device Package
    -
    Gap
    Ungapped
    Inductance Factor (Al)
    72 nH
    Effective Length (le) mm
    41.2
    Effective Area (Ae) mm²
    19.2
    Effective Magnetic Volume (Ve) mm³
    791
    Initial Permeability (µi)
    125
