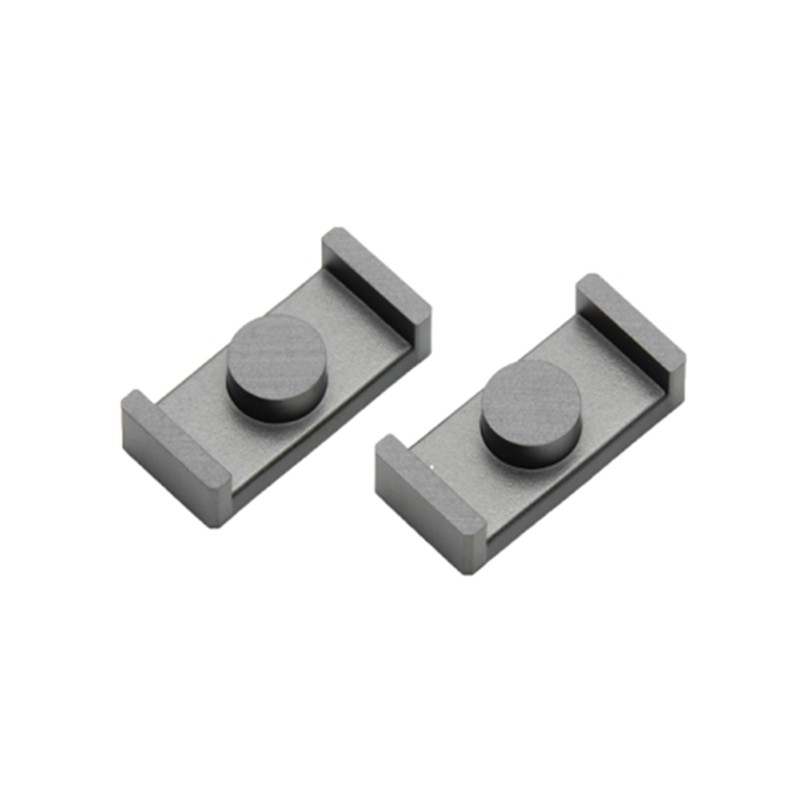

    10 pcs : PC95ER14/4.5/9-Z - FERRITE CORE ER 2.55UH PCS95 2PC
    • 10 pcs : PC95ER14/4.5/9-Z - FERRITE CORE ER 2.55UH PCS95 2PC

    10 pcs : PC95ER14/4.5/9-Z - FERRITE CORE ER 2.55UH PCS95 2PC

    10electronicpartsUK445180879ND
    £36.84
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated PC95 Ferrite Core ER Type 0.545' (13.85mm) Length 0.354' (9.00mm) Width Diameter 0.089' (2.25mm) Height
    Product Details
    TDK Corporation
    10electronicpartsUK445180879ND
    PC95ER14/4.5/9-Z
    3 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    PC95
    Width
    0.354' (9.00mm)
    Height
    0.089' (2.25mm)
    Length
    0.545' (13.85mm)
    Series
    Planar
    Finish
    Uncoated
    Core Type
    ER
    Packaging
    Tray
    Supplier Device Package
    EI 14 x 4.5 x 9
    Gap
    Ungapped
    Inductance Factor (Al)
    2.55 µH
    Effective Length (le) mm
    22.7
    Effective Area (Ae) mm²
    15.4
    Core Factor (ΣI/A) mm⁻¹
    0.68
    Effective Magnetic Volume (Ve) mm³
    349
    Minimum Core Cross Section (Amin) mm²
    21.2
