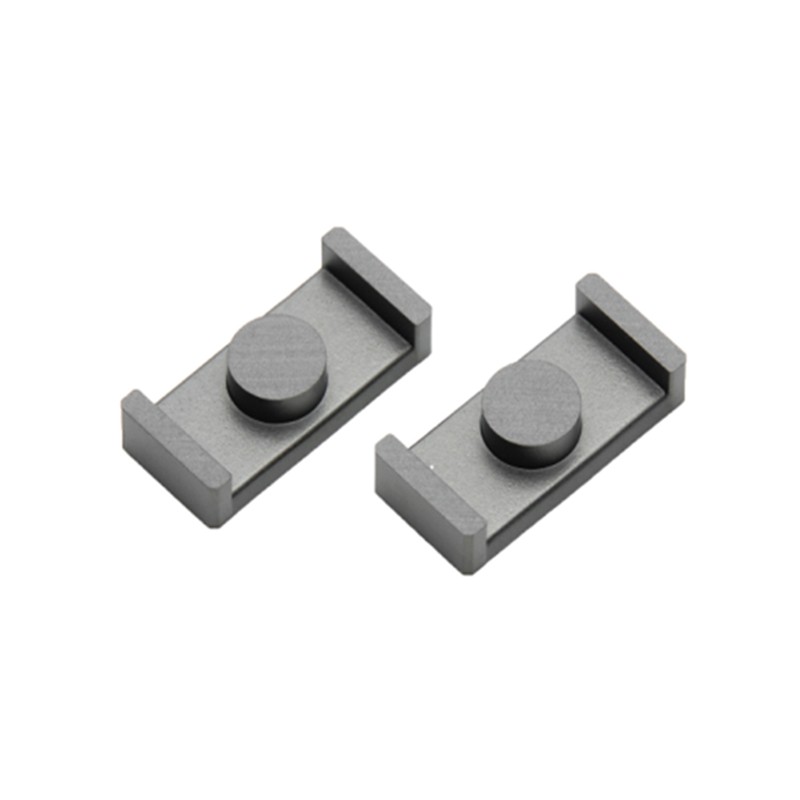

    10 pcs : PC95ER14.5/6-Z - FERRITE CORE ER 1.88UH PCS95 2PC
    • 10 pcs : PC95ER14.5/6-Z - FERRITE CORE ER 1.88UH PCS95 2PC

    10 pcs : PC95ER14.5/6-Z - FERRITE CORE ER 1.88UH PCS95 2PC

    10electronicpartsUK445180880ND
    £35.56
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated PC95 Ferrite Core ER Type 0.571' (14.50mm) Length 0.264' (6.70mm) Width Diameter 0.118' (3.00mm) Height
    Product Details
    TDK Corporation
    10electronicpartsUK445180880ND
    PC95ER14.5/6-Z
    3 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    PC95
    Width
    0.264' (6.70mm)
    Height
    0.118' (3.00mm)
    Length
    0.571' (14.50mm)
    Series
    Planar
    Finish
    Uncoated
    Core Type
    ER
    Packaging
    Tray
    Supplier Device Package
    ER 14.5 x 6
    Gap
    Ungapped
    Inductance Factor (Al)
    1.88 µH
    Effective Length (le) mm
    17.6
    Effective Area (Ae) mm²
    19
    Core Factor (ΣI/A) mm⁻¹
    1.08
    Effective Magnetic Volume (Ve) mm³
    333
    Minimum Core Cross Section (Amin) mm²
    17.3
