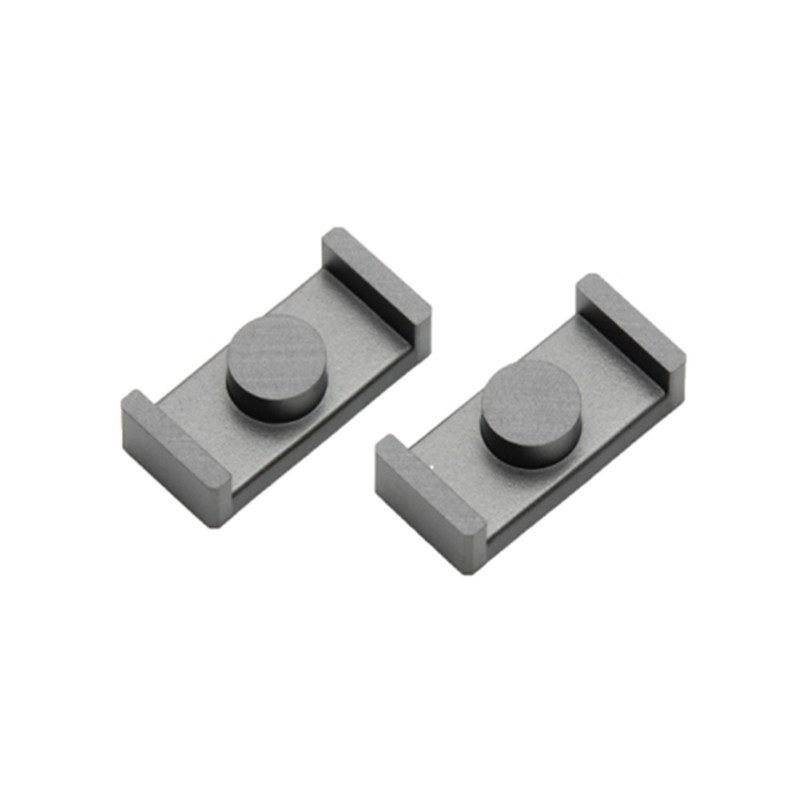

    10 pcs : PC95ER11/5-Z - FERRITE CORE ER 1.68UH PCS95 2PC
    • 10 pcs : PC95ER11/5-Z - FERRITE CORE ER 1.68UH PCS95 2PC

    10 pcs : PC95ER11/5-Z - FERRITE CORE ER 1.68UH PCS95 2PC

    10electronicpartsUK445180878ND
    £35.24
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated PC95 Ferrite Core ER Type 0.433' (11.00mm) Length 0.236' (6.00mm) Width Diameter 0.098' (2.50mm) Height
    Product Details
    TDK Corporation
    10electronicpartsUK445180878ND
    PC95ER11/5-Z
    3 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    PC95
    Width
    0.236' (6.00mm)
    Height
    0.098' (2.50mm)
    Length
    0.433' (11.00mm)
    Series
    Planar
    Finish
    Uncoated
    Core Type
    ER
    Packaging
    Tray
    Supplier Device Package
    ER 11 x 5
    Gap
    Ungapped
    Inductance Factor (Al)
    1.68 µH
    Effective Length (le) mm
    11.9
    Effective Area (Ae) mm²
    14.7
    Core Factor (ΣI/A) mm⁻¹
    1.23
    Effective Magnetic Volume (Ve) mm³
    174
    Minimum Core Cross Section (Amin) mm²
    10.3
