Description

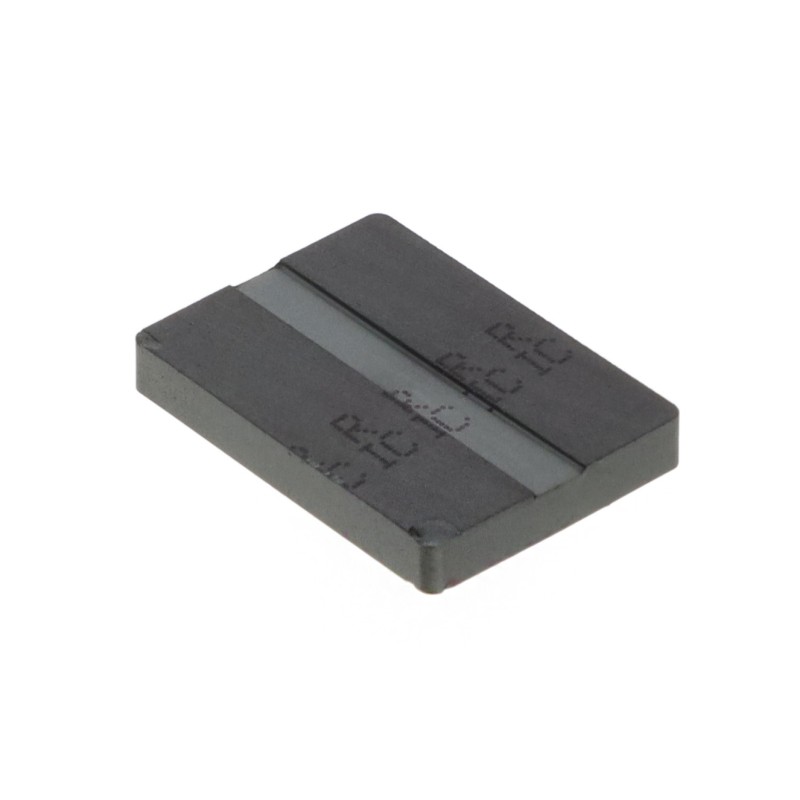

Uncoated Ferrite Core I Type 0.858' (21.80mm) Length 0.622' (15.80mm) Width Diameter 0.114' (2.90mm) Height
Product Details
10AllpartsUK4616CR42216ICND
CR42216IC
3 Items
Data sheet
- Manufacturer
- Magnetics, a division of Spang & Co.
- Tolerance
- -
- Part status
- Active
- Diameter
- -
- Material
- -
- Width
- 0.622' (15.80mm)
- Height
- 0.114' (2.90mm)
- Length
- 0.858' (21.80mm)
- Series
- -
- Finish
- Uncoated
- Core Type
- I
- Packaging
- Bulk
- Supplier Device Package
- -
- Gap
- Ungapped
- Inductance Factor (Al)
- 5.956 µH
- Effective Length (le) mm
- 26.1
- Effective Area (Ae) mm²
- 80.4
- Effective Magnetic Volume (Ve) mm³
- 2100
- Initial Permeability (µi)
- 2300
