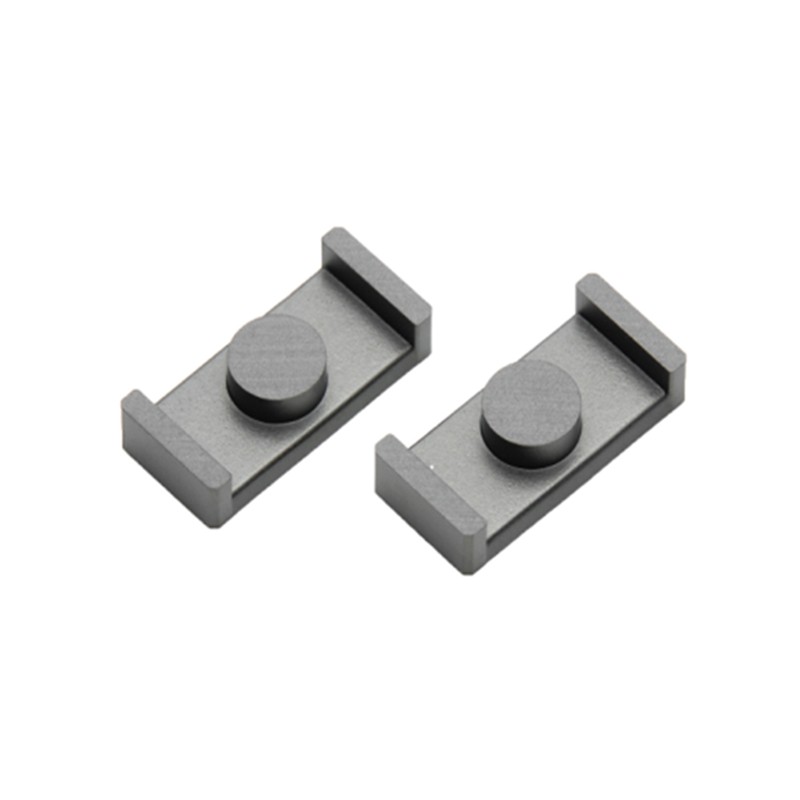

    10 pcs : PC95ER9.5/5-Z - FERRITE CORE ER 1.19UH PCS95 2PC
    • 10 pcs : PC95ER9.5/5-Z - FERRITE CORE ER 1.19UH PCS95 2PC

    10 pcs : PC95ER9.5/5-Z - FERRITE CORE ER 1.19UH PCS95 2PC

    10electronicpartsUK445180877ND
    £33.96
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated PC95 Ferrite Core ER Type 0.374' (9.50mm) Length 0.197' (5.00mm) Width Diameter 0.098' (2.50mm) Height
    Product Details
    TDK Corporation
    10electronicpartsUK445180877ND
    PC95ER9.5/5-Z
    3 Items

    Data sheet

    Manufacturer
    TDK Corporation
    Tolerance
    ±25%
    Part status
    Active
    Diameter
    -
    Material
    PC95
    Width
    0.197' (5.00mm)
    Height
    0.098' (2.50mm)
    Length
    0.374' (9.50mm)
    Series
    Planar
    Finish
    Uncoated
    Core Type
    ER
    Packaging
    Tray
    Supplier Device Package
    ER 9.5 x 5
    Gap
    Ungapped
    Inductance Factor (Al)
    1.19 µH
    Effective Length (le) mm
    8.47
    Effective Area (Ae) mm²
    14.2
    Core Factor (ΣI/A) mm⁻¹
    1.67
    Effective Magnetic Volume (Ve) mm³
    120
    Minimum Core Cross Section (Amin) mm²
    7.6
