Description

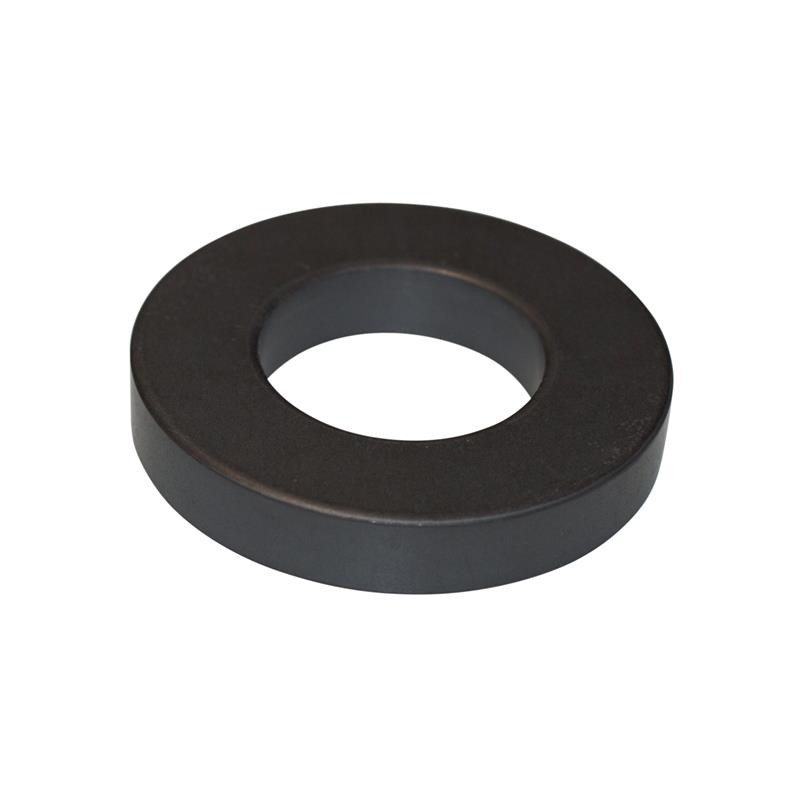

Uncoated 95 Ferrite Core Toroid Type Length Width 0.500' (12.70mm) Diameter 0.250' (6.35mm) Height
Product Details
1AllpartsUK19345995001101ND
5995001101
3 Items
Data sheet
- Manufacturer
- Fair-Rite Products Corp.
- Tolerance
- ±25%
- Part status
- Active
- Diameter
- 0.500' (12.70mm)
- Material
- 95
- Width
- -
- Height
- 0.250' (6.35mm)
- Length
- -
- Series
- HF
- Finish
- Uncoated
- Core Type
- Toroid
- Packaging
- Bag
- Supplier Device Package
- -
- Gap
- Ungapped
- Inductance Factor (Al)
- 1778 nH
- Effective Length (le) mm
- 31
- Effective Area (Ae) mm²
- 14.7
- Core Factor (ΣI/A) mm⁻¹
- 0.0212
- Effective Magnetic Volume (Ve) mm³
- 455
- Initial Permeability (µi)
- 3000
