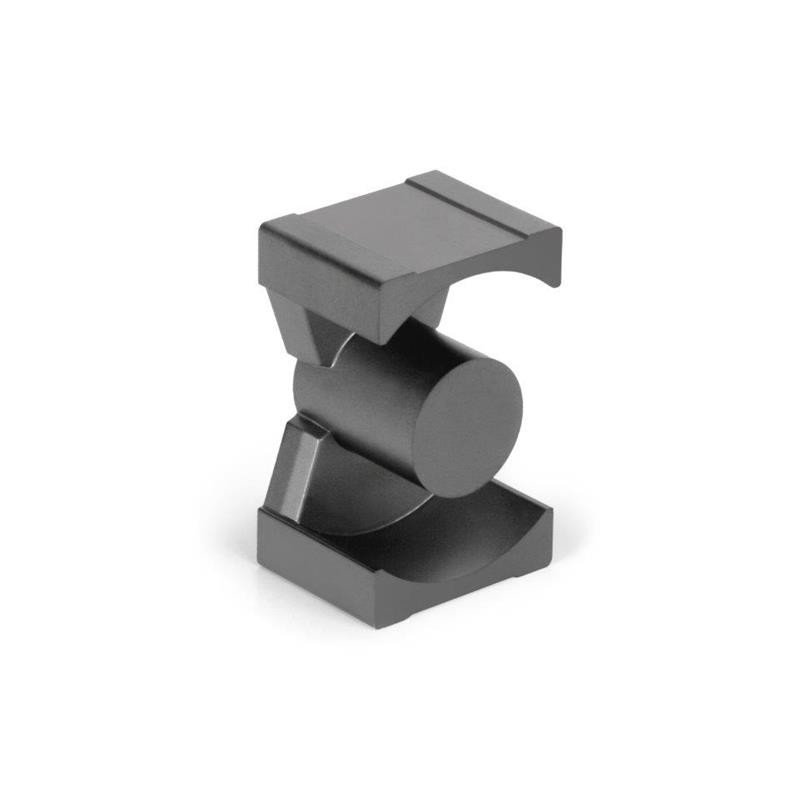

    1 pcs : 0R42625UG - FERRITE CORE PQ 4.6UH
    • 1 pcs : 0R42625UG - FERRITE CORE PQ 4.6UH

    1 pcs : 0R42625UG - FERRITE CORE PQ 4.6UH

    1AllpartsUK46160R42625UGND
    £12.22
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated Ferrite Core PQ Type 1.075' (27.30mm) Length 0.748' (19.00mm) Width Diameter 0.486' (12.35mm) Height
    Product Details
    Magnetics, a division of Spang & Co.
    1AllpartsUK46160R42625UGND
    0R42625UG
    3 Items

    Data sheet

    Manufacturer
    Magnetics, a division of Spang & Co.
    Tolerance
    -
    Part status
    Active
    Diameter
    -
    Material
    -
    Width
    0.748' (19.00mm)
    Height
    0.486' (12.35mm)
    Length
    1.075' (27.30mm)
    Series
    -
    Finish
    Uncoated
    Core Type
    PQ
    Packaging
    Bulk
    Supplier Device Package
    -
    Gap
    Ungapped
    Inductance Factor (Al)
    4.6 µH
    Effective Length (le) mm
    54.3
    Effective Area (Ae) mm²
    120
    Effective Magnetic Volume (Ve) mm³
    6530
    Minimum Core Cross Section (Amin) mm²
    108
    Initial Permeability (µi)
    2300
