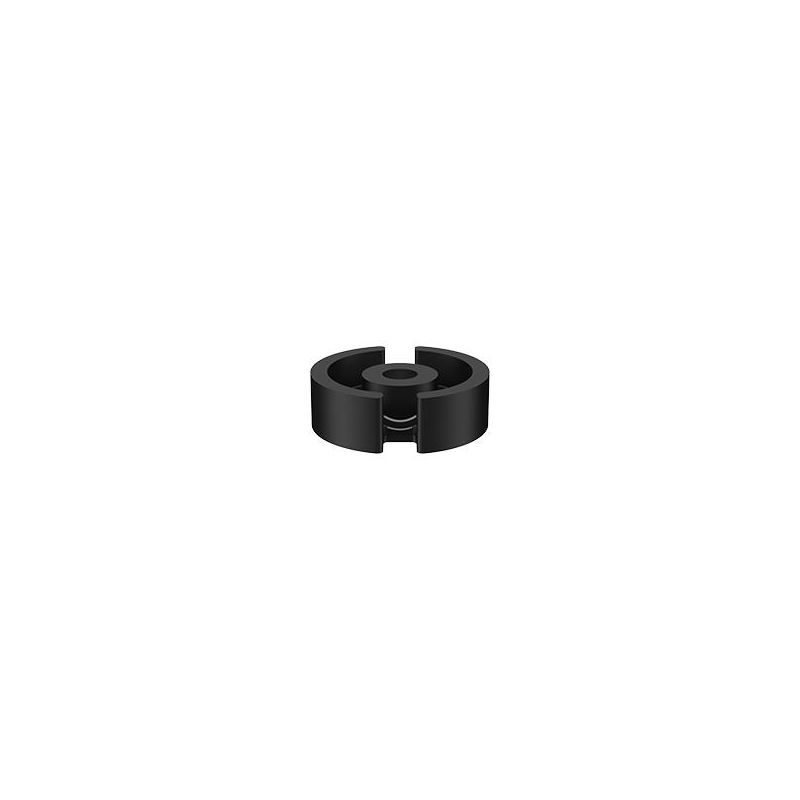

    1 pcs : B65541D0000R001 - FERRITE CORE P 140NH K1 2PCS
    • 1 pcs : B65541D0000R001 - FERRITE CORE P 140NH K1 2PCS

    1 pcs : B65541D0000R001 - FERRITE CORE P 140NH K1 2PCS

    1electronicpartsUK495B65541D0000R001ND
    £16.32
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Uncoated K1 Ferrite Core P (Pot Core) Type Length Width 0.563' (14.30mm) Diameter 0.167' (4.25mm) Height
    Product Details
    EPCOS - TDK Electronics
    1electronicpartsUK495B65541D0000R001ND
    B65541D0000R001
    3 Items

    Data sheet

    Manufacturer
    EPCOS - TDK Electronics
    Tolerance
    -20%, +30%
    Part status
    Active
    Diameter
    0.563' (14.30mm)
    Material
    K1
    Width
    -
    Height
    0.167' (4.25mm)
    Length
    -
    Series
    P14/8
    Finish
    Uncoated
    Core Type
    P (Pot Core)
    Packaging
    Box
    Supplier Device Package
    P 14 x 8
    Gap
    Ungapped
    Effective Permeability (µe)
    89
    Inductance Factor (Al)
    140 nH
    Effective Length (le) mm
    20
    Effective Area (Ae) mm²
    25
    Core Factor (ΣI/A) mm⁻¹
    0.8
    Effective Magnetic Volume (Ve) mm³
    500
    Minimum Core Cross Section (Amin) mm²
    20
    Initial Permeability (µi)
    80
