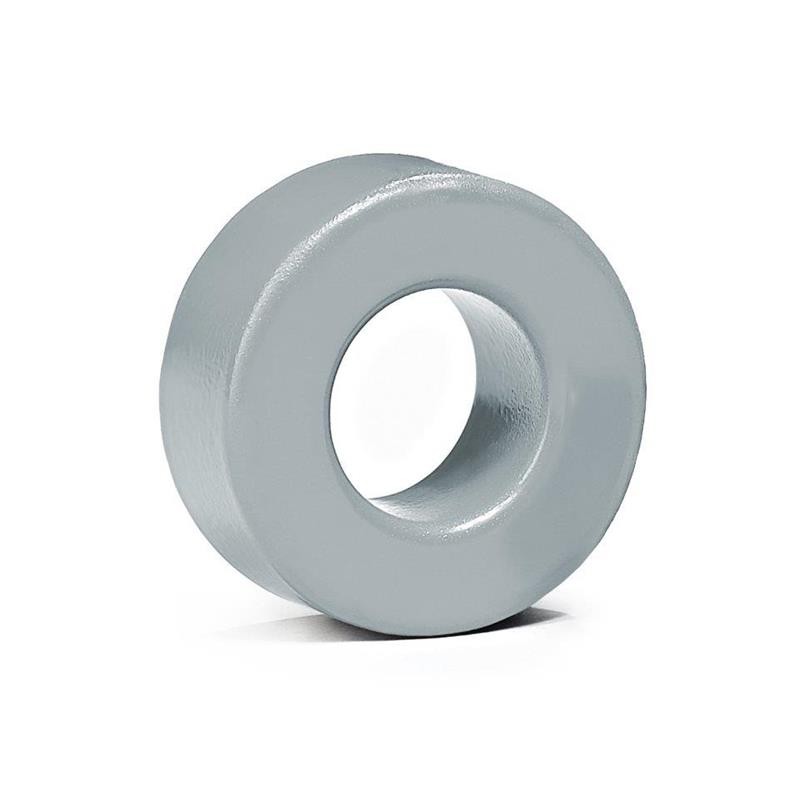

1 pcs : C055310A2 - FERRITE CORE TOROID 90NH MPP
    • 1 pcs : C055310A2 - FERRITE CORE TOROID 90NH MPP

    1 pcs : C055310A2 - FERRITE CORE TOROID 90NH MPP

    1AllpartsUK4616C055310A2ND
    £22.93
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    Coated MPP Ferrite Core Toroid Type Length Width 0.900' (22.86mm) Diameter 0.300' (7.60mm) Height
    Product Details
    1AllpartsUK4616C055310A2ND
    C055310A2
    3 Items

    Data sheet

    Manufacturer
    Magnetics, a division of Spang & Co.
    Tolerance
    ±8%
    Part status
    Active
    Diameter
    0.900' (22.86mm)
    Material
    MPP
    Width
    -
    Height
    0.300' (7.60mm)
    Length
    -
    Series
    -
    Finish
    Coated
    Core Type
    Toroid
    Packaging
    Bulk
    Supplier Device Package
    -
    Gap
    Ungapped
    Inductance Factor (Al)
    90 nH
    Effective Length (le) mm
    56.7
    Effective Area (Ae) mm²
    31.7
    Effective Magnetic Volume (Ve) mm³
    1800
    Initial Permeability (µi)
    125
